Extend FireWire 1,000 Meters (3,280 Feet) with Fiber Optic Cable

Exceed the maximum 1394 FireWire length with fiber optic cable.

Also known as: IEEE 1394 firewire extender, firewire to fiber optic, exceed maximum 1394 firewire cable length,
Firewire extender, 1394 FireWire Optical extension, long firewire, firewire fiber optic extension system, balun.
Discontinued

No longer available



Additional Product Information

Application Note: Extend up to five firewire devices up to 3,280 feet via fiber optic cable
Data Sheet (PDF)
ST-FO1394-SC Firewire Optical Extender up to 1,000 meters

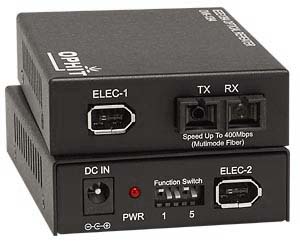

ST-FO1394-SC (Front and Back)


ROHS Compliant Firewire Optical Extender

Features & Applications

The XTENDEX® Firewire Optical Extender extends a firewire device up to 1,000 meters (3,280 feet) using multimode fiber optic cable. The local and remote units connect using multimode fiber optic cable.
  • Complies with 1394a and 1394b standards.
  • Works with 1394b at speeds of 400, 200 and 100 Mbps, and with 1394a at speeds of 400, 200 and 100 Mbps.
  • Extend a firewire device up to 500/1,000 meters (1,640/3,280 feet).
    • Using 50/125um cable, extend up to 1,000 meters (3,280 feet).
    • Using 62.5/125um cable, extend up to 500 meters (1,640 feet).
  • Full duplex data rate up to 400Mbps (Optical)
  • Supports Plug-n-Play specifications.
  • Pure hardware design, no software or drivers required.
The Firewire Optical Extender is the ideal solution for a wide range of applications. Examples include:
  • A/V Broadcasting and Editing (printers, scanners, digital cameras/camcorders, digital audio recorders).
  • Security (Surveillance cameras, webcams, mass storage).
  • Long range IEEE FireWire networking.

Specifications

  • Compatible with computers with 1394 outputs.
  • Compliant with IEEE 1394b and IEEE1394a-2000 specifications.
  • Full duplex data rate at 100/200/400 Mbps.
  • Laser Class 1 Safety compliant.
  • Optical source: 850nm VCSEL.
  • Supports 62.5um and 50um multimode fiber optic cable.
Connectors
  • One optical port with SC connector.
  • Two 6-pin IEEE 1394 connectors.
Dimensions
  • WxDxH (in): 4x2.8x0.9
Power
  • 110 to 220 VAC at 50 or 60 Hz via AC adapter.
Enviromental
  • Operating Temperature: 32°F to 122°F (0°C to 50°C).
Regulatory Approvals
  • CE, FCC, RoHS
Package Includes
  • Two 1394 optical repeaters.
  • 4.5 meter male 6-pin to male 6-pin 1394 cable.
  • Two power supplies.
  • User manual.
Warranty
  • Two years

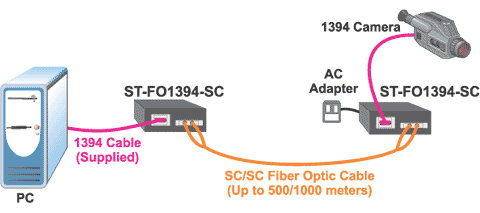

Firewire Optical Extender Application Drawing
How to extend FireWire 1,000 meters (3,280 ft) with fiber optic cable
