Environment Monitoring System Access Control

Access Control Systems & Accessories Compatible with ENVIROMUX® E-MINI-LXO &
PWR-RMT-RBT-C13

Access Control Systems

Fingerprint Access Control System

E-FACS - Fingerprint Access Control System
E-FACS-P
  • Biometric fingerprint reader with durable and highly accurate optical sensor.
  • Quick single touch, one second user recognition.
  • Alarm, door, and egress button contacts.
  • Selectable 26-bit or 34-bit Wiegand data input and output.
  • Audio-visual indicators for acceptance and rejection of valid/invalid fingerprints.
  • Stores up to 600 fingerprint templates and 15,000 transactions.
  • Built-in serial, USB, and Ethernet ports for RS232/RS485, USB Host, and TCP/IP communication.
  • Includes the following management software:
    • Access Control Software
      • Import and export all user data, and set up sensor settings and delay.
      • Keeps logs of all user entries.
    • Attendance Management Software
      • Configure employee schedules and monitor and download access logs.
  • Tamper-proof.
  • IP65 rated.
  • Compatible EM cards (E-RFID-CRD10) and keyfobs (E-RFID-KYFB10) are available in packs of ten.
  • Includes 12V/1A power supply.
  • Operating temperature: 14 to 140°F (-10 to 60°C).
  • Operating humidity: 10 to 90% non-condensing RH.
  • Dimensions (WxDxH): 2.87x1.38x5.83 in (73x35x148 mm).
  • Compatible with E-MINI-LXO and PWR-RMT-RBT-C13.
  • Regulatory approvals: CE, FCC, RoHS.
NTI Part # Description Price Quote Buy
E-FACS-P Fingerprint Access Control System $340.00
E-RFID-CRD10 RFID EM Cards, 10-Pack $12.00
E-RFID-KYFB10 RFID EM Keyfobs, 10-Pack $14.00

Access Control Digital Keypad

E-ACK-V2P - Access Control Digital Keypad
E-ACK-V2P
  • Two relay outputs controlled by two groups of independent user codes.
    • Output 1: 12V3A relay for door strike
      • Requires 12VDC external power supply (not included).
      • The use of Output 1 will not provide support for alert messages through the ENVIROMUX.
    • Output 2: 1 Amp relay for other control applications.
  • Normally closed and normally open dry contact for output relay #2.
  • Operate with fail-safe or fail-secure locking device.
  • LED indicators for operation status and system status.
  • Door open announcer.
  • Non-volatile memory in case of power failure.
  • Door automatically re-locks after valid access to prevent "tailgate entry".
  • User Codes:
    • Output 1: 100 user codes.
    • Output 2: 10 user codes.
  • Duress code for door opening and reporting in the event of the owner opening the door under duress.
  • Multi-task super user code for inhibiting (refuse access with user codes), overriding door lock (keep door open); and operating the two outputs under any condition.
  • Includes 12V/1A power supply.
  • Compatible with E-MINI-LXO and PWR-RMT-RBT-C13.
  • Dimensions (WxDxH) in: 2.83x1.69x4.57 (72x43x116 mm).
NTI Part # Price Quote Buy
E-ACK-V2P $80.00

RFID EM Cards/Keyfobs

RFID EM Cards, 10-Pack
E-RFID-CRD10

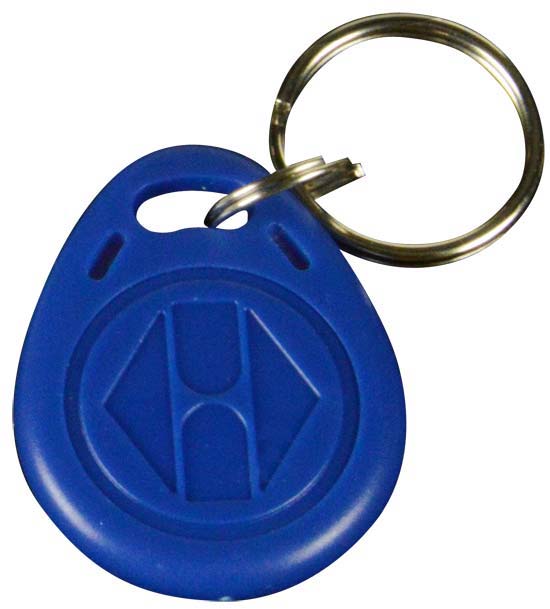

  • E-RFID-KYFB10 - Additional RFID EM Keyfobs for E-ACKR or E-ACKR-WDB.
  • Supports additional users for RFID Access Control Keypads.
  • Code: 64 bit.
  • Function: read only.
  • Operating frequency: 125 Khz.
  • Modulation: ASK.
  • Quantity: 10 cards/keyfobs.
  • Dimensions (WxDxH) in:
    • E-RFID-CRD10: 2.09x0.07x3.35 (53.6x1.9x85.2 mm) each.
    • E-RFID-KYFB10: 1.10x0.24x1.38 (28x6.2x35 mm) each.
  • Compatible with E-FACS-P, E-ACKR-P and E-ACKR-WDB-P.

NTI Part # Description Price Quote Buy
E-RFID-CRD10 RFID EM Cards, 10-Pack $12.00
E-RFID-KYFB10 RFID EM Keyfobs, 10-Pack $14.00
