Clearance: Rackmount USB KVM Drawer with Touchpad Mouse

USB KVM Drawer provides space-saving convenient control.

Limited stock. All sales final on clearance items

Additional Product Information

Catalog Page Data Sheet (PDF)
CAD Drawing:
USB KVM Drawer combining a LCD monitor, USB keyboard and touchpad mouse in an industrial strength drawer.
zoom Click here to zoom in on image
RACKMUX-UW15-CLR (Front & Back)

Price each:
$1,215
$675

Order from Chart at the Bottom of the Page.
Limited stock.
All sales final on
clearance items.

Features & Applications

The RACKMUX® USB KVM Drawer combines a rackmount LCD monitor, USB keyboard and touchpad mouse in a space-saving 1RU industrial strength drawer.
  • Available with a forward-folding 15" Active Matrix LCD flat panel monitor.
  • Equipped with On Screen Display (OSD).
  • Compact, heavy-duty tactile keyboard.
  • Security lock on front panel.
  • Front panel conceals the unit when not in use.
  • Designed to fit in a standard 19" rack/cabinet.
  • Display automatically powers off when in closed position.
  • Drawer locks into place when open to prevent it from sliding in and out of the rack.

Specifications

Hosts
  • Compatible with USB-enabled PC, SUN or MAC computers.
Monitor
  • Forward-folding 15" Active Matrix LCD flat panel monitor.
  • 1024x768 video resolution
  • Supports Composite sync, H/V separate (TTL) sync. Does not support Sync on Green. Not compatible with all Sun Microsystems.
  • Frequency:
    • Horzontal: 30 to 64 KHz
    • Vertical: 50 to 75 Hz
  • Viewing angle: Horizontal: 115°, Vertical: 115°
  • OSD controls for brightness, contrast, phase, pitch, Horz- and Vert-center alignment, zoom and color adjustment.
  • 250 nits brightness and 350:1 contrast ratio typical.
  • Supports DDC1 and DDC2B protocols.
Devices
  • Female USB Type A connector.
  • "Gold Crosspoint" keyboard contacts ensure high reliability.
  • 105-key keyboard.
  • Two button touchpad mouse.
Cables
  • 6-foot 15 HD VGA male to male cable included.
  • 6-foot USB Type A male to male cable included
  • 6-foot DC power supply cable included.
Power
  • 110 or 220 VAC at 50 or 60 Hz via AC Adapter.
  • Power consumption: 25W
  • Maximum Inrush Current: 21A
MTBF
  • 49,998 hrs
Environmental
  • Operating temperature: 32°F to 104°F (0°C to 40°C).
  • Storage temperature: -4°F to 140°F (-20°C to 60°C).
  • Operating and Storage Relative Humidity: 5 to 95% non-condensing RH.
Dimensions
  • WxDxH (in.): 19x20.1x1.75.
  • Drawer is adjustable to various rack depths from 20.1" to 31.5".

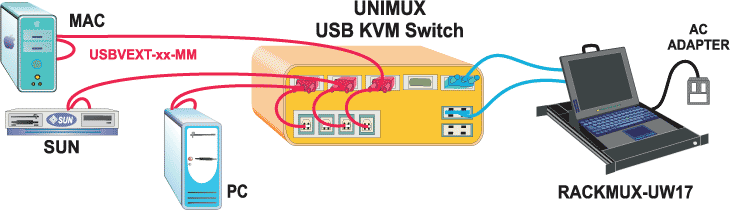

Application Drawing - Unimux USB KVM Switch

Extension Rail Option

Rackmux Extensions
RACKMUX-EXT-RL
  • Allows adjustments to various rack depths from 24.1" to 34.8".

USB KVM Drawers

NTI Part # Screen
Size		 Price $ # to Quote # to Buy
RACKMUX-UW15-CLR15"1,215 675
RACKMUX-EXT-RLN/A55
Request Quote
Limited stock. All sales are final on clearance items.
