RCA L/R Stereo Audio Extender via CAT5 up to
300 Feet

Extend composite RCA left/right analog stereo audio speakers up to 300 feet away from an audio source.

RCA L/R Stereo Audio Extender via CAT5 up to 300 Feet
XTENDEX® ST-C5CA-LC
*The transmitter looks the same as the receiver

Additional Images

  • XTENDEX® ST-C5CA-LC - side view

Product Highlights

  • No power supply
  • Compact size

The XTENDEX® RCA L/R Stereo Audio Extender transmits analog stereo audio signals up to 300 feet using single CAT5e/6/7 cable. Each extender consists of two interchangeable units that can be connected to a composite RCA left/right analog stereo audio source and RCA stereo audio speakers or receiver.

The XTENDEX® RCA L/R Stereo Audio Extender transmits analog stereo audio signals up to 300 feet using single CAT5e/6/7 cable. Each extender consists of two interchangeable units that can be connected to a composite RCA left/right analog stereo audio source and RCA stereo audio speakers or receiver.

  • Transmits an analog stereo audio signal over one CAT5/6/7 cable.
  • Transmitter and receiver baluns are interchangeable.
  • No power supply is necessary.
  • Supports Plug-n-Play specification.
Local & Remote Unit
  • Two RCA plugs for connecting to a source or speakers/receiver.
  • Signal type: stereo audio, analog, left/right
  • One female RJ45 connector for sending/receiving analog stereo audio.
  • Bandwidth: 10Hz to 50kHz ±3dB
Dimensions
  • Local and remote unit WxDxH: 0.91x1.38x0.44 in (23x35x24 mm) with 4-inch (101-mm) male 3.5mm stereo audio cable attached.
Regulatory Approvals
  • TAA compliant.
Warranty
  • Two years.
Cables
  • Use CAT5e/6/7 straight through cable for TIA/EIA-568B wiring terminated with standard RJ45 connectors (not included).

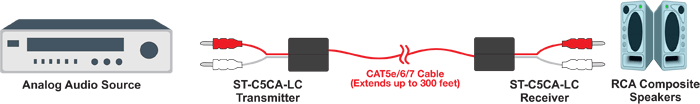

Application Drawings

  • RCA L/R Stereo Audio Extender via CAT5 up to 300 Feet
    RCA L/R Stereo Audio Extender via CAT5 up to 300 Feet

RCA L/R Stereo Audio Extender via CAT5 up to 300 Feet

NTI Part # Description Price Quote Buy
ST-C5CA-LC RCA L/R Stereo Audio Extender via CAT5 up to 300 Feet $30.00
