13W3 UNIVERSAL KVM SWITCH

ALLOWS YOU TO CONTROL MULTIPLE PC, SUN & MACS WITH ONE
KEYBOARD, MOUSE & EITHER A SUN OR VGA MULTISCAN MONITOR.

Also know as server switch, Universal Keyboard Monitor Switch, KVM switch,
universal switch, CPU switch, multiplatform kvm switch, keyboard switch, KVM switches.

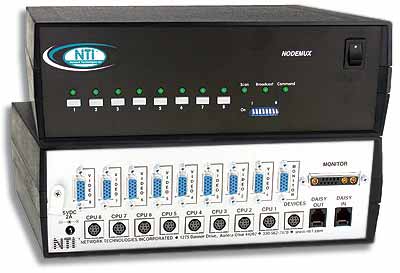

NODEMUX™ ST-8U-13W3 Universal KVM Switch
(Front & Back)

Instant call back
(8:00am-6:00pm EST)

Features & Applications

NTI's NODEMUX™ 13W3 Universal KVM switch allows you to control 2, 4 or 8 computers (PC, MAC or SUN) with a PS/2, MAC or Sun keyboard and mouse using either a Sun or VGA multiscan monitor! (Refer to your manual if you are unsure if your monitor is multiscan).

SUN video monitor output connector is 13W3 female.
VGA multiscan monitor output connector is 15pin HD female.
Female 15pin HD video input connectors.
Proprietary keyboard interface cables are necessary for proper operation between CPUs and Universal switch box.
ST-xU-13W3s work with all PC-compatible SUN monitors.

PC Compatible Sun Monitors

24" Color CRT

Sony GDM-90W10 115V/240V with non-removable 1.5M Video Cable
- Part# 365-1352
- Part# 365-1353, OEM Model

21" Color CRT

Sony N3, .26mm Dot-Pitch 115V/240V Monitor, DB13W3 with non-removable 2.0M Video Cable
- Part# 365-1383
- Part# 365-1384, OEM Model
- Part# 365-1386, Korean Model

20" Premium Color CRT

Sony N2, .31mm Dot-Pitch 115V/240V Monitor, DB13W3 FCC-B, Energy Star with non-removable 1.2M Video Cable
- Part# 365-1335
- Part# 365-1337, OEM Model
- Part# 365-1340, S.Hemisphere Model
- Part# 365-1342, Korean Model

19" Premium Color CRT

Hitachi, .26mm Dot-Pitch 115V/240V Monitor, HD15F w/o Cable
- Part# 365-1380
- Part# 365-1381, OEM Model

17" Premium Color CRT
(requires internal rework)

Sony N2 GDM17E20, .26mm Dot-Pitch 115V/240V Monitor, DB13W3, FCC-B/VCC1-2 with non-removable 1.2M Video Cable
- Part# 365-1338
- Part# 365-1339, OEM Model
- Part# 365-1341, S.Hemisphere Model

17" Entry Level Color CRT

Nokia, .27mm Dot-Pitch 115V/240V Monitor, HD15, FCC-B/VCCI-2, with non-removable 1.5M Video Cable
- Part# 365-1354
- Part# 365-1355, OEM Model
Nokia, .28mm Dot-Pitch 115V/240V Monitor, DB13W3, FCC-B/VCCI-2, with non-removable 1.2M Video Cable
- Part# 365-1343
- Part# 365-1345, OEM Model

14" Entry Level Color CRT

Samsung, .28mm Dot-Pitch, 115V/240V Monitor, SVGA, HD-15
- Part# 365-1388
- Part# 365-1389, OEM Model
Samsung CQB4157L, .28mm Dot-Pitch, 115V/240V Monitor, SVGA, HD-15
- Part# 365-1350
- Part# 365-1351, OEM Model

* NOTE: Customers using DDC capable video cards may be required to manually change the default resolution of their video card to the desired resolution.

* Compatibility information taken from the Sun Microsystems (6/98) "Field Engineer Handbook Volume 2"
