SUN KVM Drawer, Single Person Installation

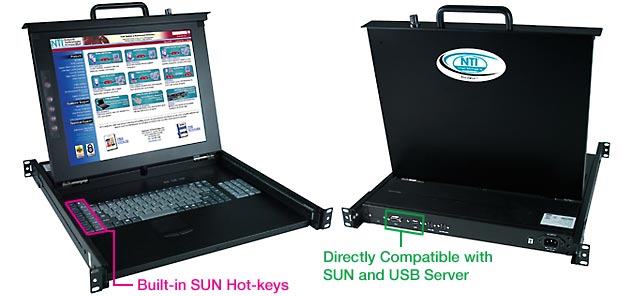

Rack mount SUN USB keyboard, 17" LCD monitor, mouse drawer

1RU KVM Drawer with SUN keyboard provides convenient control and ease of installation. Rack mountable by one person.

Discontinued: No longer available.

Additional Product Information

Application Note: Single Person Installation

Rack Mount LCD Monitor Keyboard Drawer with SUN USB keyboard and 3-button trackball fits in 1RU of rack space.

Single-Person
Installation

Features & Applications

The RACKMUX® SUN KVM Drawer combines a rackmount LCD monitor, SUN USB keyboard, and a touchpad mouse in a compact 1RU industrial strength drawer.

Compatible with PS/2 or USB enabled computers.
Available with 17" Active Matrix TFT LCD flat panel monitor.
Monitor supports SUN-compatible 1152x900 resolution.
Equipped with built-in On Screen Display (OSD) for screen adjustments.
Display automatically powers off when in closed position.

Designed to make drawer installation a one-person job.
Front panel conceals the unit when not in use.
Drawer locks into place when open to prevent it from sliding in and out of the rack.
Security lock on front panel.
Designed to fit in a standard 19" rack/cabinet.

Specifications

Hosts

Compatible with PS/2 or USB-enabled SUN, Windows, UNIX, Linux, Apple, IBM, and HP computers.

Monitor

17" Active TFT LCD flat panel monitor.
1280x1024 video resolution.
Supports SUN-compatible 1152x900 resolution.
OSD controls for brightness, contrast, phase, pitch, Horz- and Vert-center alignment, zoom and color adjustment.
250 nits brightness and 450:1 contrast ratio typical.
Viewing Angle:
- Horizontal: 60°-70°
- Vertical: 45°-60°

Devices

Female USB Type A connector for connecting to USB host.
Two female 6-pin miniDIN connectors for connecting to PS/2 host.
106-key SUN compatible keyboard with touchpad.
Supports SUN keys including STOP, CUT, PASTE, COMPOSE, COPY, HELP, OPEN, UNDO, and PROPS.
Keyboard available in multiple languages: English (US), French, German, Italian and Spanish.

Cables

6-foot 15HD VGA male to male cable included.
6-foot USB Type A male to male cable included
Two 6-foot 6-pin miniDIN male to male cables included
6-foot AC power supply cable included.

Power

Input Voltage: AC 100 - 240V, 50 - 60Hz
Power consumption: 40W
Maximum Inrush Current: 17A

Environmental

Operating temperature: 32°F to 122°F (0°C to 50°C).
Storage temperature: -4°F to 140°F (-20°C to 60°C).
Operating and Storage Relative Humidity: 17 to 90% non-condensing RH.

Dimensions

WxDxH (in.): 18x19x1.75.
Drawer is adjustable to various rack depths ranging from 20" to 39".

Regulatory Approvals

CE, FCC
