CAT5 VGA video splitter
VOPEX-C5VA-16 Local Unit (Front & Back) and ST-C5VA-600 Remote Unit

Designed and Manufactured<br /> in the U.S.A.

VGA Video Splitter/Extender via CAT5 Digital Signage Product  RoHS Compliant Video Splitter/Extender via CAT5

Features & Applications

The VOPEX® VGA Video Splitter/Extender simultaneously broadcasts
high-resolution video from one computer to 4, 8 or 16 remote monitors located up to 600 feet away using CAT5/5e/6 cable. Optional audio functionality using
self-powered stereo speakers enhances presentations.

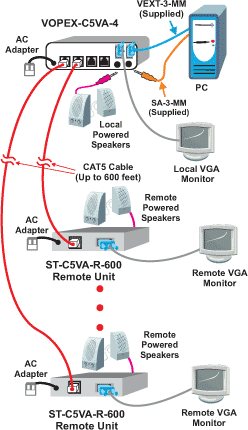

The VOPEX VGA video splitter/extender system has two components: the VOPEX-C5V-x VGA broadcast unit, which connects to the host computer and also supplies video to a local monitor, and an XTENDEX® ST-C5V-R-600 remote unit for each remote monitor. The units are interconnected by CAT5/5e/6 cable.
  • Broadcast real-time VGA video or audio/video to multiple display locations.
  • Supports resolutions up to 1920x1440.
  • Optional audio can be broadcast to self-powered stereo speakers at the local unit and each remote location.
  • Easily expandable. Add remote units as you add monitors.
  • A pure hardware solution–no software conflicts.
  • High quality rugged steel construction with durable powdercoat finish.
  • Available in optional rackmount enclosure.
    • Includes cable management shelf.
The VOPEX CAT5 VGA Video Splitter is the ideal solution for a wide range of
multi-screen applications. Examples include:
  • Give real-time arrival/departure updates to passengers at airports, train stations and bus stations.
  • Provide stock and exchange rate updates at stock exchanges and banks.
  • Broadcast entertainment or news in stores, restaurants, trains, and planes.
  • Broadcast lyrics of hymns to worshippers in churches and to singers in karaoke clubs.
  • Advertise products in shopping centers, malls, and stores.
  • A great alternative to expensive projectors in the classroom. Send a teacher's screen to all remote monitors.
  • Broadcast a presentation to personal monitors of colleagues in conference rooms, boardrooms, or to multiple monitors in a trade show booth or corporate showroom.

Specifications

Local Unit

Video Input
  • Supports a PC, SUN or MAC with VGA video.
  • Male 15-pin HD connector.
  • Input frequency ranges:
    • Horizontal: 15 kHz to 130 kHz.
    • Vertical: 30 Hz to 150 Hz
  • Supports Separate and Composite TTL level sync and Sync on Green.
  • Input impedance: 75 Ohms.
  • Maximum input levels: 1.45 p-p.
  • Video is DC coupled.
Video Output
  • Female RJ45 connectors for CAT5/5e/6 cable to remote units.
  • Female 15-pin HD connector for local monitor.
  • Crisp and clear 1920x1440 video resolution.
  • Output impedance: 75 Ohms.
  • Maximum output level: 1.45Vp-p
Optional Audio
  • 3.5mm female stereo audio jacks.
  • Frequency response: 20 Hz to 20 kHz, ±1 dB.
  • Signal-to-Noise Ratio (SNR): 76 dBA.
  • Total Harmonic Distortion and Noise (THD+N): 0.017%
  • Stereo Crosstalk: -70 dB.
  • Input impedance: 10k Ohms.
  • Line level output; supports multimedia speakers.
    • CD quality audio output.
  • Maximum I/O levels for audio: 3.1 Vp-p (line level).
Cables
  • 3-foot VGA cable included.
  • 3-foot audio cable included with units with audio option.
  • Use CAT5, CAT5e or CAT6 UTP straight through cable for TIA/EIA-568B wiring terminated with standard RJ45 connectors (not included).
Power
  • 110 or 220 VAC at 50 or 60 Hz via AC adapter.

Power Consumption

NTI Part # Power (W)NTI Part # Power (W)
VOPEX-C5V-45 VOPEX-C5VA-410
VOPEX-C5V-810 VOPEX-C5VA-810
VOPEX-C5V-1610 VOPEX-C5VA-1610

MTBF

MTBF

NTI Part # MTBF (hrs)NTI Part # MTBF (hrs)
VOPEX-C5V-484,412 VOPEX-C5VA-480,935
VOPEX-C5V-879,696 VOPEX-C5VA-875,651
VOPEX-C5V-1667,972 VOPEX-C5VA-1663,017

Environmental
  • Operating temperature: 32°F to 100°F (0°C to 38°C)
  • Storage temperature: -20°F to 140°F (-30°C to 60°C)
  • Operating and Storage Relative Humidity: 17 to 90% non-condensing RH.
Regulatory Approvals
  • CE
  • RoHS

Remote Unit

Video Output
  • Female 15-pin HD connector.
  • Supports resolutions up to 1920x1440; refer to the resolution chart below for resolutions at di fferent lengths.
    • When using CAT6 cable, some degradation may be experienced, depending on the construction of the cable.
  • Output impedance: 75 Ohms.
  • Maximum output level for video: 1.45Vp-p.
  • Video quality adjustment for different lengths of CAT5/5e/6 cable is done manually for video-only units and automatically for audio/video units.
Optional Audio
  • 3.5mm stereo audio jack.
  • Frequency response: 20 Hz to 20 kHz, ±1dB.
  • Signal-to-Noise Ratio (SNR): 76 dBA.
  • Total Harmonic Distortion and Noise (THD+N): 0.017%.
  • Stereo crosstalk: -70 dB.
  • Line level output; supports multimedia speakers.
    • CD quality audio output.
  • Maximum output levels: 3.1Vp-p (line level).
Power
  • 110 or 220 VAC at 50 or 60 Hz via AC adapter.
  • Power consumption: 10W
MTBF
  • ST-C5V-R-600: 82,214 hrs
  • ST-C5VA-R-600: 80,625 hrs
Environmental
  • Operating temperature: 32°F to 100°F (0°C to 38°C)
  • Storage temperature: -20°F to 140°F (-30°C to 60°C)
  • Operating and Storage Relative Humidity: 17 to 90% non-condensing RH.
Regulatory Approvals
  • CE, RoHS
Warning!
  • Never connect the VOPEX-C5V-x or ST-C5Vx-R-600 to an Ethernet card, Ethernet router, hub or switch or other Ethernet RJ45 connector of an Ethernet device. Damage to devices connected to the Ethernet may result.



Distances and Resolutions for
CAT5/CAT5e and CAT6 cables
Cable Distance
(feet)		 Maximum Resolution
CAT5/
CAT5e (UTP)
 600 1024x768 at 60Hz
400 1280x1024 at 60Hz
300 1600x1200 at 60Hz
100 1920x1440 at 60Hz
CAT6 (UTP) 300 1024x768 at 60Hz
200 1280x1024 at 60Hz
100 1920x1440 at 60Hz





CAT5 VGA Video Splitter/Extender, Rackmount
VOPEX-C5V-16R


The VOPEX-C5Vx VGA broadcast unit and the XTENDEX ST-C5V-R-600 remote unit are interconnected by CAT5 cable.

Also Available: CAT5 VGA Video/Audio Splitter/Extenders
