Environment Monitoring System 1-Wire Sensors
1-Wire Sensors compatible with ENVIROMUX® E-1W
RJ11 Temperature/Humidity/Dew Point Sensors
1-Wire Indoor/Outdoor Temperature Sensor, -40 to 185°F, IP67-Rated
E-T1W-xx
- Applications from -40 to 185°F (-40 to 85°C).
- Temperature accuracy:
- ±1.0°F (±0.5°C) for 14 to 185°F (-10 to 85°C).
- ±3.6°F (±2°C) for -40 to 14°F (-40 to -10°C).
- Probe size: 0.24x1.1" (6x30 mm).
- Available lengths: 3.28 feet (1 meter), 7 feet (2.13 meters)
- RJ11 connector.
- Each E-T1W-xx counts as a single reading sensor.
- Up to 24 Temperature sensors can be used with the E-1W.
- IP67-rated water and dust protection.
- Ideal for a wide range of applications, including IT infrastructure monitoring, cold storage/freezer monitoring, outdoor temperature monitoring, and more
- Regulatory approvals: CE, RoHS
- Compatible with E-1W.
- Powered by E-1W.
Downloads & References

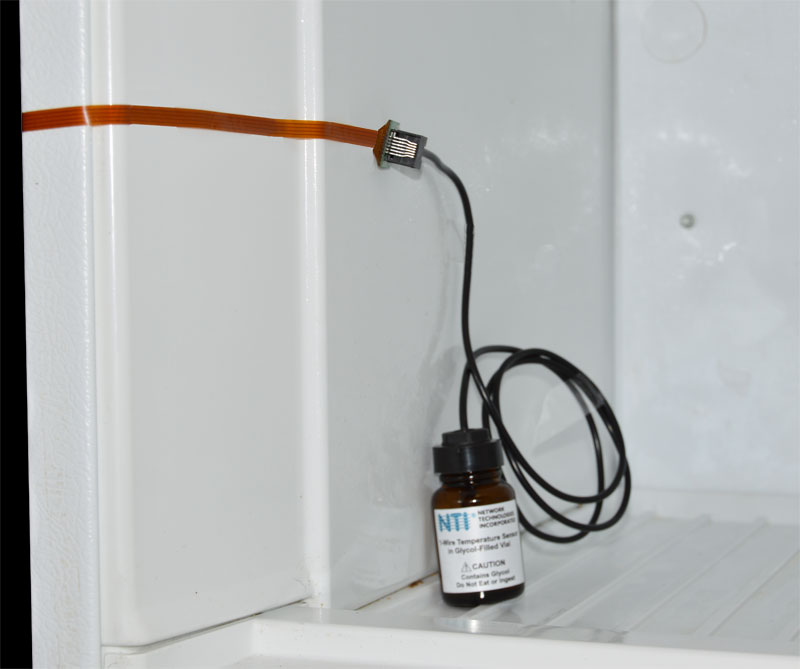

1-Wire Temperature Sensor in Glycol-Filled Vial, -40 to 158°F
E-T1WGB-xx
- Use to measure the temperature of objects in a refrigerator or freezer.
- Readings represent the temperature of the refrigerator/freezer's contents rather than the ambient air temperature.
- Buffers any momentary fluctuations that may cause false alarms, such as doors opening, defrost cycles and fans circulating air.
- Applications from -40 to 158°F (-40 to 70°C).
- Temperature accuracy:
- ±1.0°F (±0.5°C) for 14 to 158°F (-10 to 70°C).
- ±3.6°F (±2°C) for -40 to 14°F (-40 to -10°C).
- Dimensions WxH (in): 1.38x2.81 (35x71 mm).
- Available lengths: 3.28 feet (1 meter), 7 feet (2.13 meters)
- RJ11 connector.
- Each E-T1WGB-xx counts as a single reading sensor.
- Up to 24 temperature sensors can be used with the E-1W.
- Ideal for a wide range of applications including monitoring the temperature of biologics, drugs, and vaccines in pharmacies, medical offices, hospitals, and laboratories; and food temperature in cold storage.
- Regulatory approvals: CE, RoHS
- Compatible with E-1W.
- Powered by E-1W.
- MTBF: 175,200 hours

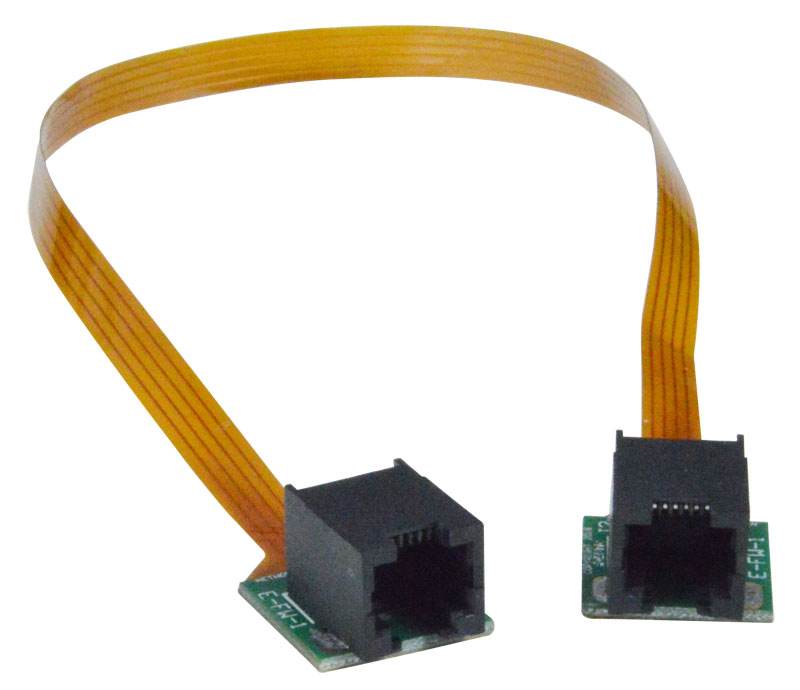

- Use E-FW-1 flex wire to connect E-T1WGB-xx to E-1W without interfering with the refrigerator/freezer seal.
- Length: 1 foot (0.3 m)
- Cable Width: 0.25 in (6.35 mm)
- Cable Thickness: 0.007 in (0.18 mm)
- Connectors: female RJ11
- Regulatory approvals: RoHS
Downloads & References
1-Wire Temperature/Humidity/Dew Point Sensor, -40 to 140°F
E-TH1W-7
- Applications from -40 to 140°F (-40 to 60°C) and 0 to 90% relative humidity.
- High resistance to external influences on the cable due to digital output signal.
- Temperature accuracy:
- ±1.44°F (±0.80°C) for -4 to 41°F (-20 to 5°C).
- ±0.72°F (±0.40°C) for 41 to 140°F (5 to 60°C).
- Humidity accuracy (at 77°F/25°C):
- 0 to 10% relative humidity: ±5%
- 10 to 80% relative humidity: ±4%
- 20 to 80% relative humidity: ±3%
- 80 to 90% relative humidity: ±4%
- Supports dew point measurement.
- Probe size: 3.75x0.58x0.64 (95x15x16 mm)
- Length: 7 feet.
- RJ11 connector.
- Each E-TH1W-7 counts as 3 single reading sensors.
- Up to 8 E-TH1W-7 sensors can be used with the E-1W if measuring temperature, humidity and dew point.
- Up to 12 E-TH1W-7 sensors can be used with the E-1W if dew point measurement is not used.
- Maximum cable length: 600 ft (183 m).
- Regulatory approvals: CE, RoHS
- Compatible with E-1W.
- Powered by E-1W.
Downloads & References
