HDMI/DVI A/V Matrix Switch via CATx
Route and distribute HDMI/DVI video and audio up to 600 feet using CATx
Also known as: HDMI/DVI A/V Matrix Switch via CAT6, Route HDMI over CAT5, HDMI matrix switcher, digital video router, DVI routing switch, DVI-D video matrices, HDTV 1080p audio/video matrix switch
Discontinued

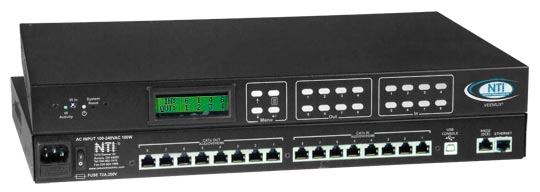

VEEMUX® SM-8X8-C6HD (Front & Back
Product Highlights
- HDCP compliant
- Extend to 600 ft via CAT5e/6/7 cable
- No power supplies required for transmitters and receivers
The VEEMUX® HDMI/DVI A/V Matrix Switch routes audio and video inputs from eight HDMI/DVI video sources to eight displays (projectors, monitors, etc.) and speakers via inexpensive CAT5e/6/7 cable. It is capable of connecting to as many as eight HDMI/DVI video sources via transmitters and eight video displays via receivers with a maximum extension of 600 feet (183 meters) between the transmitters and receivers.
The VEEMUX® HDMI/DVI A/V Matrix Switch routes audio and video inputs from eight HDMI/DVI video sources to eight displays (projectors, monitors, etc.) and speakers via inexpensive CAT5e/6/7 cable. It is capable of connecting to as many as eight HDMI/DVI video sources via transmitters and eight video displays via receivers with a maximum extension of 600 feet (183 meters) between the transmitters and receivers.
- Configure and control the switch through Ethernet, serial port (USB or RS232), front panel buttons, or Infrared remote control.
- Matrix Control Software with Graphical User Interface is included.
- Supports HDTV resolutions to 1080p and computer resolutions to 1920x1200 (WUXGA).
- Video quality adjustment is done automatically at every connection change.
- Each output provides one video signal and one stereo audio signal.
- Each input can be independently connected to any or all outputs with no image degradation.
- No loss of audio or video quality between the transmitters and receivers.
- HDCP compliant.
- EDID learning for the support of any EDID compatible display device.
- Supplies power to both the local and remote units – no additional power supplies required.
- HDMI and DVI transmitters and receivers can be supported on the same VEEMUX unit.
- The transmitter can be extended up to 300 feet (91 meters) and the receiver can be extended up to 300 feet (91 meters), for a total of 600 feet (183 meters) between the transmitters and receivers.
- The transmitters with stereo audio support are not compatible with the receivers without stereo audio, and vice versa.
Audio/Video Input/Output
- Female RJ45 input/output connectors for connecting transmitters and receivers.
- Compatible transmitters and receivers:
- HDMI Extenders
- Supports HDTV resolutions to 1080p and computer resolutions to 1920x1200 (WUXGA).
- Available options: IR, stereo audio, IR + stereo audio.
- Additional HDMI Extender Specifications
- DVI Extenders
- Supports HDTV resolutions to 1080p and computer resolutions to 1920x1200 (WUXGA).
- Available options: IR, stereo audio, IR + stereo audio.
- Additional DVI Extender Specifications
- ST-C6HD-300/ST-C6HD-IR-300/ST-C6DVI-300/ST-C6DVI-IR-300 transmitters and receivers will work together.
- ST-C6HD-A-300/ST-C6HD-AIR-300/ST-C6DVIA-300/ST-C6DVIA-IR-300 transmitters and receivers will work together.
- HDMI Extenders
Protocols
- HTTP, HTTPS
- TCP/IP, DHCP, UDP, ARP
- IPV4, IPV6
Power
- 110 or 220 VAC at 50 or 60 Hz via IEC connector. (Country-specific power supply cable included.)
- Supplies power to both the local and remote units – no additional power supplies required.
Dimensions
- WxDxH (in):
- 17.51x11.81x1.75 (without supplied rackmount kit)
- 19x11.81x1.75 (with supplied rackmount kit)
Environmental
- Operating temperature: 32 to 100°F (0 to 38°C).
- Storage temperature: -22 to 140°F (-30 to 60°C).
- Operating/storage relative humidity: 17 to 90% non-condensing RH.
Regulatory Approvals
- CE, RoHS
Front Panel Interface
- Configuration and control can be done using the front panel buttons.
- Liquid Crystal Display (LCD) can display all current connections.
RS232 Control
- Configuration and control can be done through the serial port.
- Female RJ45 connector or female USB Type B connector.
- Control the switch using the NTI Switch Control Program with Graphical User Interface (GUI control) via RS232.
- Selectable baud rate: 4800 through 115200.
- Baud rate is set via the main menu, serial command, telnet or web page.
IR Remote Control (Optional)
- Control can be done through the IR remote control.
- Transmitter can be up to 30 feet away.
- Control up to 15 switches with one remote.
- Power: Two AAA batteries (included).
Ethernet Control
- Configuration can be done over the Internet via web page or telnet.
- Female RJ45 connector.
- 10/100 BaseT Ethernet interface.
Web Server
- Security is ensured by password and user configurable timeout.
- Up to 25 users can access the web page at one time.
- The user can access the following pages:
- Switch page: allows the user to connect any input to any output, save and recall up to ten connections.
- Administration pages: administrator can access pages for system configuration, network configuration, naming video inputs/outputs, scanning sequence, DDC options, changing password, and updating firmware.
- Standby Mode page: allows the user to quickly place the switch in standby mode.
- Support page: provides links to the product manual and firmware downloads webpage.
- Reboot page: allows the user to quickly reboot the switch.
Telnet
- Security is ensured by password.
- The telnet server listens on ports 2000 and 2005.
- The telnet server listens on ports 2000 and 2005.
- Port 2005 is intended for a software control type session.
Data Sheet:
