Audio/Video Matrix Switch via CAT5

Video Routing Switch, Video Port Router
Matrix switch, Audio/Video switch, How to

Audio/Video Matrix Switch via CAT5: VGA, S-Video, HDTV Component Video

Route and distribute audio/video up to 600 feet using CAT5 cable instead of bulky coax cables

Also known as: VEEMUX® audio / video matrix switch via CAT5, video router, routing switcher, video switch, video port router, matrix switch, audio/video switch, video matrices.

ST-C5VA-L-600 & ST-C5VA-R-600, VEEMUX SM-16x16-C5AV-LCD Audio/Video Matrix Switch via CAT5

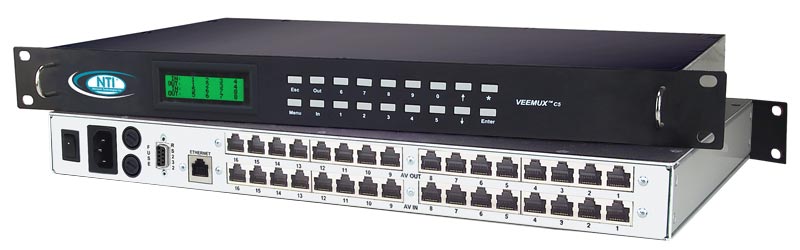

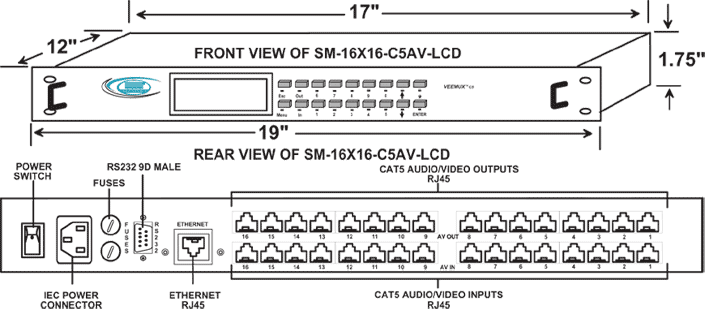

VEEMUX® SM-16X16-C5AV-LCD (Front & Back) with a
ST-C5VA-L-600 Transmitter and ST-C5VA-R-600 Receiver

Product Highlights

  • 8x8, 8x16, 16x8, 16x16, 32x8 and 32x16 available.
  • Supports resolutions to 1920x1440.
  • Designed and Manufactured in the U.S.A.
  • Digital Signage

The VEEMUX® Audio/Video Matrix Switch routes audio and video inputs from many video sources to multiple displays (projectors, monitors, etc.) and speakers via inexpensive Cat5/5e/6 UTP cable. It is capable of connecting to as many as 32 video sources via transmitters and 16 video displays via receivers with a maximum extension of 600 feet between the local and remote units.


A single audio/video output can be routed to one or more destinations. Each image will be as crisp and clear as if directly connected to the original source. Buffered video outputs and digital transmission of audio signals ensures integrity is maintained throughout the system.

The VEEMUX® Audio/Video Matrix Switch routes audio and video inputs from many video sources to multiple displays (projectors, monitors, etc.) and speakers via inexpensive Cat5/5e/6 UTP cable. It is capable of connecting to as many as 32 video sources via transmitters and 16 video displays via receivers with a maximum extension of 600 feet between the local and remote units.


A single audio/video output can be routed to one or more destinations. Each image will be as crisp and clear as if directly connected to the original source. Buffered video outputs and digital transmission of audio signals ensures integrity is maintained throughout the system.

  • Configure and control the switch through Ethernet, serial port or front panel buttons.
  • Matrix Control Software with Graphical User Interface is included.
  • Supports resolutions up to 1920x1440.
  • Inputs and outputs can be named.
  • Video quality adjustment is done automatically at every connection change, or can be forced via the front panel or web interface.
  • Equipped with Liquid Crystal Display (LCD) for front panel operation.
  • A digital VU-meter shows the audio levels of the selected output.
  • Each output provides one video signal and one stereo audio signal.
  • Each input can be independently connected to any or all outputs with no image degradation.
  • No loss of audio or video quality between the local and remote units.
  • 1RU or 2RU rackmount case is standard.
  • VGA, S-Video and HDTV transmitters and receivers can be supported on the same VEEMUX unit.
    • VGA inputs only work with VGA outputs, S-Video inputs only work with S-Video outputs, and HDTV component video inputs only work with HDTV component video outputs

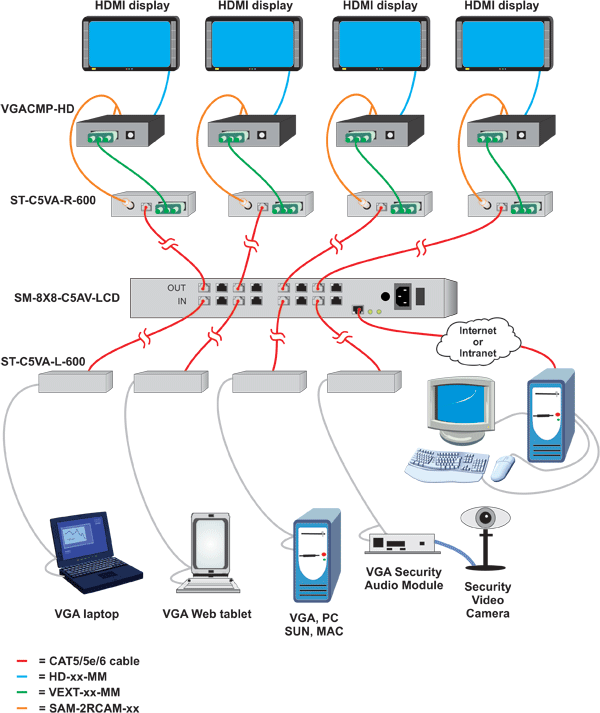

VEEMUX SM-8X8-C5AV-LCD

  • Female RJ45 input/output connectors.
  • Analog bandwidth is 175 MHz.
  • 10/100BaseT ethernet interface.
  • Supported protocols: HTTP. HTTPS, Telnet
  • RS232 interface
  • Signal to noise ratio (SNR):
    • Audio: >72dBA
    • Video: >65dB
  • Audio harmonic distortion and noise: <0.06%
  • Video distortion: 70dB @ 10 MHz
Power
MTBF
  • 58,607 hrs
Cables
  • Use CAT5, CAT5e or CAT6 solid straight through cable for TIA/EIA-568B wiring terminated with standard RJ45 connectors (not included).
Environmental
  • Operating temperature: 32 to 100°F (0 to 38°C).
  • Storage temperature: -20 to 140°F (-30 to 60°C).
  • Operating and Storage Relative Humidity: 17 to 90% non-condensing RH.

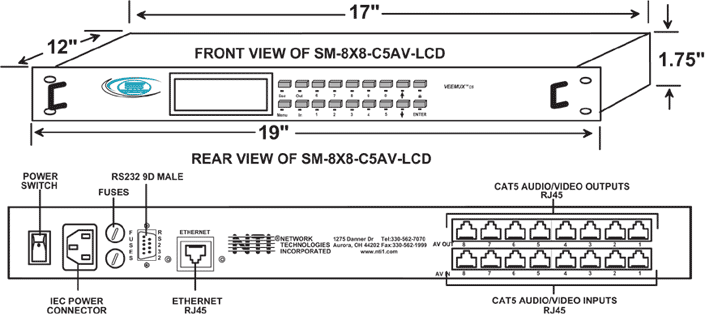

Dimensions
Audio/Video Matrix Switch via CAT5
NTI Part # Rack
Units
Size
WxDxH (in)
SM-8X8-C5AV-LCD 1RU 19x12x1.75
Regulatory Approvals
  • CE, RoHS
Warranty
  • Two years

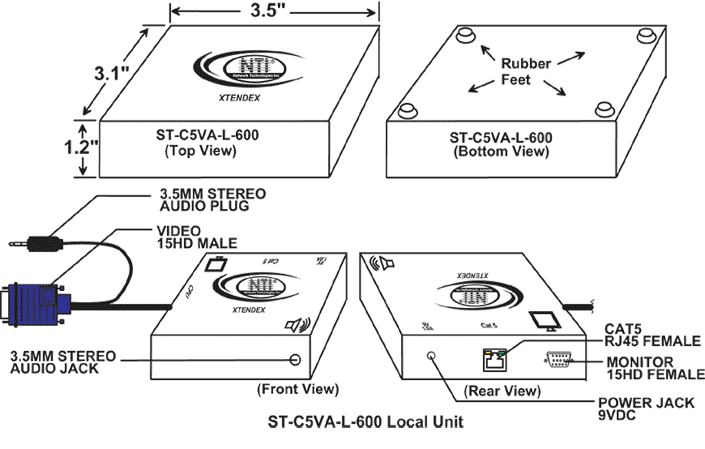

Local Unit (Transmitter)

Video
  • VGA transmitter:
    • Male 15-pin HD connector for input connection.
    • Female 15-pin HD connector for local monitor.
    • Supports resolutions to 1920x1440.
    • Signal to noise ratio: >55dB
    • Distortion: 65dB at 5MHz
  • S-Video transmitter:
    • Male 4-pin miniDIN connector for input connection.
    • Female 4-pin miniDIN connector for local monitor.
    • Supports maximum 800x600 S-Video resolution.
  • HDTV Component Video transmitter:
    • Three RCA plugs for input connection.
    • Three RCA jacks for local monitor.
    • Supports HDTV resolutions to 1080p.
  • Input impedance: 75 Ohms.
  • Maximum input level: 1.45Vp-p.
  • Supports Separate and Composite TTL level sync.
  • Input Sync frequency ranges:
    • Horizontal: 15 to 130 kHz.
    • Vertical: 30 kHz to 150 Hz.
  • Video is DC coupled.
Audio
  • VGA video + audio transmitter: 3.5 mm stereo audio RCA plugs for input connection and 3.5 mm stereo audio jack for local speakers.
  • S-Video + audio transmitter: two RCA plugs for input connection and 3.5 mm stereo audio jack for local speakers.
  • HDTV + stereo audio transmitter: two RCA plugs for input connection and two RCA jacks for local speakers.
  • Input impedance: 10k Ohms.
  • Maximum input levels: 3.1Vp-p (line level).
  • CD quality audio output.
Power

MTBF
NTI Part # MTBF (hrs)
ST-C5VA-L-600 84,189
ST-C5SVA-L-600 86,086
ST-C5CMPSA-L-600 77,426
Environmental
  • Operating temperature: 32 to 100°F (0 to 38°C).
  • Storage temperature: -20 to 140°F (-30 to 60°C).
  • Operating and Storage Relative Humidity: 17 to 90% non-condensing RH.
Regulatory Approvals
  • CE, RoHS
Warranty
  • Two years

Remote Unit (Receiver)

Video
  • VGA receiver:
    • Female 15-pin HD connector.
    • Supports resolutions up to 1920x1440.
    • Signal to noise ratio: >55dB
    • Distortion: 65dB at 5MHz
  • S-Video receiver:
    • Female 4-pin miniDIN connector.
    • Supports maximum 800x600 S-Video resolution.

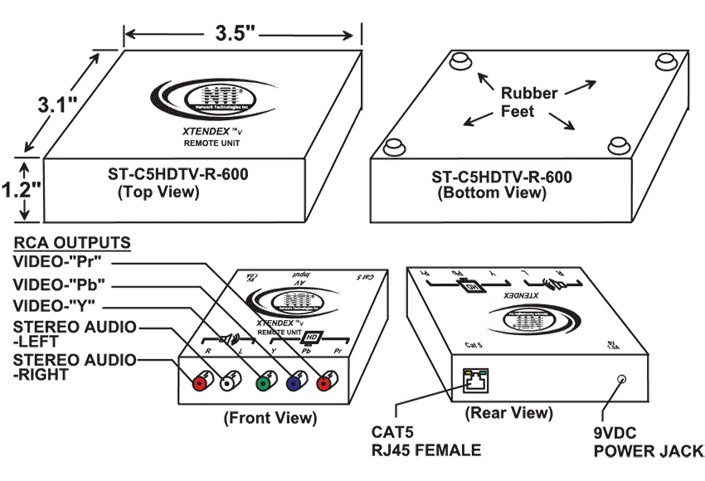

  • HDTV Component Video receiver:
    • Three RCA jacks.
    • Resolutions: HDTV 480i, 480p, 720i, 720p, 1080i, and 1080p.
  • Video quality adjustment for different lengths of CAT5/5e/6 cable is done automatically.
    • When using CAT6, some degradation may be experienced depending on the length of the cable.
  • Output impedance: 75 Ohms.
  • Maximum output level: 1.45Vp-p.
Audio
  • VGA video + audio receiver: 3.5 mm stereo audio jack.
  • S-Video + audio receiver: 3.5 mm stereo audio jack.
  • HDTV + stereo audio receiver: two RCA jacks.
  • Frequency response: 20 Hz to 20 kHz, ±1dB.
  • Signal-to-Noise Ratio (SNR): 72 dBA.
  • Total Harmonic Distortion and Noise (THD+N): 0.017%
  • Stereo crosstalk: -70 dB.
  • Maximum output levels: 3.1Vp-p (line level).
  • Line level output: supports multimedia speakers.
    • CD quality audio output.
  • Require powered speakers.
Power

MTBF
NTI Part # MTBF (hrs)
ST-C5VA-R-600 82,214
ST-C5SVA-R-600 86,077
ST-C5CMPSA-R-600 83,389
Environmental
  • Operating temperature: 32 to 100°F (0 to 38°C).
  • Storage temperature: -20 to 140°F (-30 to 60°C).
  • Operating and Storage Relative Humidity: 17 to 90% non-condensing RH.
Regulatory Approvals
  • CE, RoHS
Warranty
  • Two years

Distances and Resolutions for CAT5/CAT5e and CAT6 Cables
Cable Distance Maximum Resolution
CAT5/CAT5e 600 feet (183 meters) 1024x768 at 60 Hz
400 feet (122 meters) 1280x1024 at 60 Hz
300 feet (91 meters) 1600x1200 at 60 Hz
100 feet (30 meters) 1920x1440 at 60 Hz
CAT6 300 feet (91 meters) 1024x768 at 60 Hz
200 feet (61 meters) 1280x1024 at 60 Hz
100 feet (30 meters) 1920x1440 at 60 Hz

VEEMUX SM-8X16-C5AV-LCD

  • Female RJ45 input/output connectors.
  • Analog bandwidth is 175 MHz.
  • 10/100BaseT ethernet interface.
  • Supported protocols: HTTP. HTTPS, Telnet
  • RS232 interface
  • Signal to noise ratio (SNR):
    • Audio: >72dBA
    • Video: >65dB
  • Audio harmonic distortion and noise: <0.06%
  • Video distortion: 70dB @ 10 MHz
Power
MTBF
  • 49,569 hrs.
Cables
  • Use CAT5, CAT5e or CAT6 solid straight through cable for TIA/EIA-568B wiring terminated with standard RJ45 connectors (not included).
Environmental
  • Operating temperature: 32 to 100°F (0 to 38°C).
  • Storage temperature: -20 to 140°F (-30 to 60°C).
  • Operating and Storage Relative Humidity: 17 to 90% non-condensing RH.
Dimensions
Audio/Video Matrix Switch via CAT5
NTI Part # Rack
Units
Size
WxDxH (in)
SM-8X16-C5AV-LCD 1RU 19x12x1.75
Regulatory Approvals
  • CE, RoHS
Warranty
  • Two years

Local Unit (Transmitter)

Video
  • VGA transmitter:
    • Male 15-pin HD connector for input connection.
    • Female 15-pin HD connector for local monitor.
    • Supports resolutions to 1920x1440.
    • Signal to noise ratio: >55dB
    • Distortion: 65dB at 5MHz
  • S-Video transmitter:
    • Male 4-pin miniDIN connector for input connection.
    • Female 4-pin miniDIN connector for local monitor.
    • Supports maximum 800x600 S-Video resolution.
  • HDTV Component Video transmitter:
    • Three RCA plugs for input connection.
    • Three RCA jacks for local monitor.
    • Supports HDTV resolutions to 1080p.
  • Input impedance: 75 Ohms.
  • Maximum input level: 1.45Vp-p.
  • Supports Separate and Composite TTL level sync.
  • Input Sync frequency ranges:
    • Horizontal: 15 to 130 kHz.
    • Vertical: 30 kHz to 150 Hz.
  • Video is DC coupled.
Audio
  • VGA video + audio transmitter: 3.5 mm stereo audio RCA plugs for input connection and 3.5 mm stereo audio jack for local speakers.
  • S-Video + audio transmitter: two RCA plugs for input connection and 3.5 mm stereo audio jack for local speakers.
  • HDTV + stereo audio transmitter: two RCA plugs for input connection and two RCA jacks for local speakers.
  • Input impedance: 10k Ohms.
  • Maximum input levels: 3.1Vp-p (line level).
  • CD quality audio output.
Power

MTBF
NTI Part # MTBF (hrs)
ST-C5VA-L-600 84,189
ST-C5SVA-L-600 86,086
ST-C5CMPSA-L-600 77,426
Environmental
  • Operating temperature: 32 to 100°F (0 to 38°C).
  • Storage temperature: -20 to 140°F (-30 to 60°C).
  • Operating and Storage Relative Humidity: 17 to 90% non-condensing RH.
Regulatory Approvals
  • CE, RoHS
Warranty
  • Two years

Remote Unit (Receiver)

Video
  • VGA receiver:
    • Female 15-pin HD connector.
    • Supports resolutions up to 1920x1440.
    • Signal to noise ratio: >55dB
    • Distortion: 65dB at 5MHz
  • S-Video receiver:
    • Female 4-pin miniDIN connector.
    • Supports maximum 800x600 S-Video resolution.
  • HDTV Component Video receiver:
    • Three RCA jacks.
    • Resolutions: HDTV 480i, 480p, 720i, 720p, 1080i, and 1080p.
  • Video quality adjustment for different lengths of CAT5/5e/6 cable is done automatically.
    • When using CAT6, some degradation may be experienced depending on the length of the cable.
  • Output impedance: 75 Ohms.
  • Maximum output level: 1.45Vp-p.
Audio
  • VGA video + audio receiver: 3.5 mm stereo audio jack.
  • S-Video + audio receiver: 3.5 mm stereo audio jack.
  • HDTV + stereo audio receiver: two RCA jacks.
  • Frequency response: 20 Hz to 20 kHz, ±1dB.
  • Signal-to-Noise Ratio (SNR): 72 dBA.
  • Total Harmonic Distortion and Noise (THD+N): 0.017%
  • Stereo crosstalk: -70 dB.
  • Maximum output levels: 3.1Vp-p (line level).
  • Line level output: supports multimedia speakers.
    • CD quality audio output.
  • Require powered speakers.
Power

MTBF
NTI Part # MTBF (hrs)
ST-C5VA-R-600 82,214
ST-C5SVA-R-600 86,077
ST-C5CMPSA-R-600 83,389
Environmental
  • Operating temperature: 32 to 100°F (0 to 38°C).
  • Storage temperature: -20 to 140°F (-30 to 60°C).
  • Operating and Storage Relative Humidity: 17 to 90% non-condensing RH.
Regulatory Approvals
  • CE, RoHS
Warranty
  • Two years

Distances and Resolutions for CAT5/CAT5e and CAT6 Cables
Cable Distance Maximum Resolution
CAT5/CAT5e 600 feet (183 meters) 1024x768 at 60 Hz
400 feet (122 meters) 1280x1024 at 60 Hz
300 feet (91 meters) 1600x1200 at 60 Hz
100 feet (30 meters) 1920x1440 at 60 Hz
CAT6 300 feet (91 meters) 1024x768 at 60 Hz
200 feet (61 meters) 1280x1024 at 60 Hz
100 feet (30 meters) 1920x1440 at 60 Hz

VEEMUX SM-16X8-C5AV-LCD

  • Female RJ45 input/output connectors.
  • Analog bandwidth is 175 MHz.
  • 10/100BaseT ethernet interface.
  • Supported protocols: HTTP. HTTPS, Telnet
  • RS232 interface
  • Signal to noise ratio (SNR):
    • Audio: >72dBA
    • Video: >65dB
  • Audio harmonic distortion and noise: <0.06%
  • Video distortion: 70dB @ 10 MHz
Power
MTBF
  • 52,007 hrs.
Cables
  • Use CAT5, CAT5e or CAT6 solid straight through cable for TIA/EIA-568B wiring terminated with standard RJ45 connectors (not included).
Environmental
  • Operating temperature: 32 to 100°F (0 to 38°C).
  • Storage temperature: -20 to 140°F (-30 to 60°C).
  • Operating and Storage Relative Humidity: 17 to 90% non-condensing RH.
Dimensions
Audio/Video Matrix Switch via CAT5
NTI Part # Rack
Units
Size
WxDxH (in)
SM-16X8-C5AV-LCD 1RU 19x12x1.75
Regulatory Approvals
  • CE, RoHS
Warranty
  • Two years

Local Unit (Transmitter)

Video
  • VGA transmitter:
    • Male 15-pin HD connector for input connection.
    • Female 15-pin HD connector for local monitor.
    • Supports resolutions to 1920x1440.
    • Signal to noise ratio: >55dB
    • Distortion: 65dB at 5MHz
  • S-Video transmitter:
    • Male 4-pin miniDIN connector for input connection.
    • Female 4-pin miniDIN connector for local monitor.
    • Supports maximum 800x600 S-Video resolution.
  • HDTV Component Video transmitter:
    • Three RCA plugs for input connection.
    • Three RCA jacks for local monitor.
    • Supports HDTV resolutions to 1080p.
  • Input impedance: 75 Ohms.
  • Maximum input level: 1.45Vp-p.
  • Supports Separate and Composite TTL level sync.
  • Input Sync frequency ranges:
    • Horizontal: 15 to 130 kHz.
    • Vertical: 30 kHz to 150 Hz.
  • Video is DC coupled.
Audio
  • VGA video + audio transmitter: 3.5 mm stereo audio RCA plugs for input connection and 3.5 mm stereo audio jack for local speakers.
  • S-Video + audio transmitter: two RCA plugs for input connection and 3.5 mm stereo audio jack for local speakers.
  • HDTV + stereo audio transmitter: two RCA plugs for input connection and two RCA jacks for local speakers.
  • Input impedance: 10k Ohms.
  • Maximum input levels: 3.1Vp-p (line level).
  • CD quality audio output.
Power

MTBF
NTI Part # MTBF (hrs)
ST-C5VA-L-600 84,189
ST-C5SVA-L-600 86,086
ST-C5CMPSA-L-600 77,426
Environmental
  • Operating temperature: 32 to 100°F (0 to 38°C).
  • Storage temperature: -20 to 140°F (-30 to 60°C).
  • Operating and Storage Relative Humidity: 17 to 90% non-condensing RH.
Regulatory Approvals
  • CE, RoHS
Warranty
  • Two years

Remote Unit (Receiver)

Video
  • VGA receiver:
    • Female 15-pin HD connector.
    • Supports resolutions up to 1920x1440.
    • Signal to noise ratio: >55dB
    • Distortion: 65dB at 5MHz
  • S-Video receiver:
    • Female 4-pin miniDIN connector.
    • Supports maximum 800x600 S-Video resolution.
  • HDTV Component Video receiver:
    • Three RCA jacks.
    • Resolutions: HDTV 480i, 480p, 720i, 720p, 1080i, and 1080p.
  • Video quality adjustment for different lengths of CAT5/5e/6 cable is done automatically.
    • When using CAT6, some degradation may be experienced depending on the length of the cable.
  • Output impedance: 75 Ohms.
  • Maximum output level: 1.45Vp-p.
Audio
  • VGA video + audio receiver: 3.5 mm stereo audio jack.
  • S-Video + audio receiver: 3.5 mm stereo audio jack.
  • HDTV + stereo audio receiver: two RCA jacks.
  • Frequency response: 20 Hz to 20 kHz, ±1dB.
  • Signal-to-Noise Ratio (SNR): 72 dBA.
  • Total Harmonic Distortion and Noise (THD+N): 0.017%
  • Stereo crosstalk: -70 dB.
  • Maximum output levels: 3.1Vp-p (line level).
  • Line level output: supports multimedia speakers.
    • CD quality audio output.
  • Require powered speakers.
Power

MTBF
NTI Part # MTBF (hrs)
ST-C5VA-R-600 82,214
ST-C5SVA-R-600 86,077
ST-C5CMPSA-R-600 83,389
Environmental
  • Operating temperature: 32 to 100°F (0 to 38°C).
  • Storage temperature: -20 to 140°F (-30 to 60°C).
  • Operating and Storage Relative Humidity: 17 to 90% non-condensing RH.
Regulatory Approvals
  • CE, RoHS
Warranty
  • Two years

Distances and Resolutions for CAT5/CAT5e and CAT6 Cables
Cable Distance Maximum Resolution
CAT5/CAT5e 600 feet (183 meters) 1024x768 at 60 Hz
400 feet (122 meters) 1280x1024 at 60 Hz
300 feet (91 meters) 1600x1200 at 60 Hz
100 feet (30 meters) 1920x1440 at 60 Hz
CAT6 300 feet (91 meters) 1024x768 at 60 Hz
200 feet (61 meters) 1280x1024 at 60 Hz
100 feet (30 meters) 1920x1440 at 60 Hz

VEEMUX SM-16X16-C5AV-LCD

  • Female RJ45 input/output connectors.
  • Analog bandwidth is 175 MHz.
  • 10/100BaseT ethernet interface.
  • Supported protocols: HTTP. HTTPS, Telnet
  • RS232 interface
  • Signal to noise ratio (SNR):
    • Audio: >72dBA
    • Video: >65dB
  • Audio harmonic distortion and noise: <0.06%
  • Video distortion: 70dB @ 10 MHz
Power
MTBF
  • 48,479 hrs.
Cables
  • Use CAT5, CAT5e or CAT6 solid straight through cable for TIA/EIA-568B wiring terminated with standard RJ45 connectors (not included).
Environmental
  • Operating temperature: 32 to 100°F (0 to 38°C).
  • Storage temperature: -20 to 140°F (-30 to 60°C).
  • Operating and Storage Relative Humidity: 17 to 90% non-condensing RH.
Dimensions
Audio/Video Matrix Switch via CAT5
NTI Part # Rack
Units
Size
WxDxH (in)
SM-16X16-C5AV-LCD 1RU 19x12x1.75
Regulatory Approvals
  • CE, RoHS
Warranty
  • Two years

Local Unit (Transmitter)

Video
  • VGA transmitter:
    • Male 15-pin HD connector for input connection.
    • Female 15-pin HD connector for local monitor.
    • Supports resolutions to 1920x1440.
    • Signal to noise ratio: >55dB
    • Distortion: 65dB at 5MHz
  • S-Video transmitter:
    • Male 4-pin miniDIN connector for input connection.
    • Female 4-pin miniDIN connector for local monitor.
    • Supports maximum 800x600 S-Video resolution.
  • HDTV Component Video transmitter:
    • Three RCA plugs for input connection.
    • Three RCA jacks for local monitor.
    • Supports HDTV resolutions to 1080p.
  • Input impedance: 75 Ohms.
  • Maximum input level: 1.45Vp-p.
  • Supports Separate and Composite TTL level sync.
  • Input Sync frequency ranges:
    • Horizontal: 15 to 130 kHz.
    • Vertical: 30 kHz to 150 Hz.
  • Video is DC coupled.
Audio
  • VGA video + audio transmitter: 3.5 mm stereo audio RCA plugs for input connection and 3.5 mm stereo audio jack for local speakers.
  • S-Video + audio transmitter: two RCA plugs for input connection and 3.5 mm stereo audio jack for local speakers.
  • HDTV + stereo audio transmitter: two RCA plugs for input connection and two RCA jacks for local speakers.
  • Input impedance: 10k Ohms.
  • Maximum input levels: 3.1Vp-p (line level).
  • CD quality audio output.
Power

MTBF
NTI Part # MTBF (hrs)
ST-C5VA-L-600 84,189
ST-C5SVA-L-600 86,086
ST-C5CMPSA-L-600 77,426
Environmental
  • Operating temperature: 32 to 100°F (0 to 38°C).
  • Storage temperature: -20 to 140°F (-30 to 60°C).
  • Operating and Storage Relative Humidity: 17 to 90% non-condensing RH.
Regulatory Approvals
  • CE, RoHS
Warranty
  • Two years

Remote Unit (Receiver)

Video
  • VGA receiver:
    • Female 15-pin HD connector.
    • Supports resolutions up to 1920x1440.
    • Signal to noise ratio: >55dB
    • Distortion: 65dB at 5MHz
  • S-Video receiver:
    • Female 4-pin miniDIN connector.
    • Supports maximum 800x600 S-Video resolution.
  • HDTV Component Video receiver:
    • Three RCA jacks.
    • Resolutions: HDTV 480i, 480p, 720i, 720p, 1080i, and 1080p.
  • Video quality adjustment for different lengths of CAT5/5e/6 cable is done automatically.
    • When using CAT6, some degradation may be experienced depending on the length of the cable.
  • Output impedance: 75 Ohms.
  • Maximum output level: 1.45Vp-p.
Audio
  • VGA video + audio receiver: 3.5 mm stereo audio jack.
  • S-Video + audio receiver: 3.5 mm stereo audio jack.
  • HDTV + stereo audio receiver: two RCA jacks.
  • Frequency response: 20 Hz to 20 kHz, ±1dB.
  • Signal-to-Noise Ratio (SNR): 72 dBA.
  • Total Harmonic Distortion and Noise (THD+N): 0.017%
  • Stereo crosstalk: -70 dB.
  • Maximum output levels: 3.1Vp-p (line level).
  • Line level output: supports multimedia speakers.
    • CD quality audio output.
  • Require powered speakers.
Power

MTBF
NTI Part # MTBF (hrs)
ST-C5VA-R-600 82,214
ST-C5SVA-R-600 86,077
ST-C5CMPSA-R-600 83,389
Environmental
  • Operating temperature: 32 to 100°F (0 to 38°C).
  • Storage temperature: -20 to 140°F (-30 to 60°C).
  • Operating and Storage Relative Humidity: 17 to 90% non-condensing RH.
Regulatory Approvals
  • CE, RoHS
Warranty
  • Two years

Distances and Resolutions for CAT5/CAT5e and CAT6 Cables
Cable Distance Maximum Resolution
CAT5/CAT5e 600 feet (183 meters) 1024x768 at 60 Hz
400 feet (122 meters) 1280x1024 at 60 Hz
300 feet (91 meters) 1600x1200 at 60 Hz
100 feet (30 meters) 1920x1440 at 60 Hz
CAT6 300 feet (91 meters) 1024x768 at 60 Hz
200 feet (61 meters) 1280x1024 at 60 Hz
100 feet (30 meters) 1920x1440 at 60 Hz

VEEMUX SM-32X8-C5AV-LCD

  • Female RJ45 input/output connectors.
  • Analog bandwidth is 175 MHz.
  • 10/100BaseT ethernet interface.
  • Supported protocols: HTTP. HTTPS, Telnet
  • RS232 interface
  • Signal to noise ratio (SNR):
    • Audio: >72dBA
    • Video: >65dB
  • Audio harmonic distortion and noise: <0.06%
  • Video distortion: 70dB @ 10 MHz
Power
MTBF
  • 45,248 hrs.
Cables
  • Use CAT5, CAT5e or CAT6 solid straight through cable for TIA/EIA-568B wiring terminated with standard RJ45 connectors (not included).
Environmental
  • Operating temperature: 32 to 100°F (0 to 38°C).
  • Storage temperature: -20 to 140°F (-30 to 60°C).
  • Operating and Storage Relative Humidity: 17 to 90% non-condensing RH.
Dimensions
Audio/Video Matrix Switch via CAT5
NTI Part # Rack
Units
Size
WxDxH (in)
SM-32X8-C5AV-LCD 2RU 19x12x3.5
Regulatory Approvals
  • CE, RoHS
Warranty
  • Two years

Local Unit (Transmitter)

Video
  • VGA transmitter:
    • Male 15-pin HD connector for input connection.
    • Female 15-pin HD connector for local monitor.
    • Supports resolutions to 1920x1440.
    • Signal to noise ratio: >55dB
    • Distortion: 65dB at 5MHz
  • S-Video transmitter:
    • Male 4-pin miniDIN connector for input connection.
    • Female 4-pin miniDIN connector for local monitor.
    • Supports maximum 800x600 S-Video resolution.
  • HDTV Component Video transmitter:
    • Three RCA plugs for input connection.
    • Three RCA jacks for local monitor.
    • Supports HDTV resolutions to 1080p.
  • Input impedance: 75 Ohms.
  • Maximum input level: 1.45Vp-p.
  • Supports Separate and Composite TTL level sync.
  • Input Sync frequency ranges:
    • Horizontal: 15 to 130 kHz.
    • Vertical: 30 kHz to 150 Hz.
  • Video is DC coupled.
Audio
  • VGA video + audio transmitter: 3.5 mm stereo audio RCA plugs for input connection and 3.5 mm stereo audio jack for local speakers.
  • S-Video + audio transmitter: two RCA plugs for input connection and 3.5 mm stereo audio jack for local speakers.
  • HDTV + stereo audio transmitter: two RCA plugs for input connection and two RCA jacks for local speakers.
  • Input impedance: 10k Ohms.
  • Maximum input levels: 3.1Vp-p (line level).
  • CD quality audio output.
Power

MTBF
NTI Part # MTBF (hrs)
ST-C5VA-L-600 84,189
ST-C5SVA-L-600 86,086
ST-C5CMPSA-L-600 77,426
Environmental
  • Operating temperature: 32 to 100°F (0 to 38°C).
  • Storage temperature: -20 to 140°F (-30 to 60°C).
  • Operating and Storage Relative Humidity: 17 to 90% non-condensing RH.
Regulatory Approvals
  • CE, RoHS
Warranty
  • Two years

Remote Unit (Receiver)

Video
  • VGA receiver:
    • Female 15-pin HD connector.
    • Supports resolutions up to 1920x1440.
    • Signal to noise ratio: >55dB
    • Distortion: 65dB at 5MHz
  • S-Video receiver:
    • Female 4-pin miniDIN connector.
    • Supports maximum 800x600 S-Video resolution.
  • HDTV Component Video receiver:
    • Three RCA jacks.
    • Resolutions: HDTV 480i, 480p, 720i, 720p, 1080i, and 1080p.
  • Video quality adjustment for different lengths of CAT5/5e/6 cable is done automatically.
    • When using CAT6, some degradation may be experienced depending on the length of the cable.
  • Output impedance: 75 Ohms.
  • Maximum output level: 1.45Vp-p.
Audio
  • VGA video + audio receiver: 3.5 mm stereo audio jack.
  • S-Video + audio receiver: 3.5 mm stereo audio jack.
  • HDTV + stereo audio receiver: two RCA jacks.
  • Frequency response: 20 Hz to 20 kHz, ±1dB.
  • Signal-to-Noise Ratio (SNR): 72 dBA.
  • Total Harmonic Distortion and Noise (THD+N): 0.017%
  • Stereo crosstalk: -70 dB.
  • Maximum output levels: 3.1Vp-p (line level).
  • Line level output: supports multimedia speakers.
    • CD quality audio output.
  • Require powered speakers.
Power

MTBF
NTI Part # MTBF (hrs)
ST-C5VA-R-600 82,214
ST-C5SVA-R-600 86,077
ST-C5CMPSA-R-600 83,389
Environmental
  • Operating temperature: 32 to 100°F (0 to 38°C).
  • Storage temperature: -20 to 140°F (-30 to 60°C).
  • Operating and Storage Relative Humidity: 17 to 90% non-condensing RH.
Regulatory Approvals
  • CE, RoHS
Warranty
  • Two years

Distances and Resolutions for CAT5/CAT5e and CAT6 Cables
Cable Distance Maximum Resolution
CAT5/CAT5e 600 feet (183 meters) 1024x768 at 60 Hz
400 feet (122 meters) 1280x1024 at 60 Hz
300 feet (91 meters) 1600x1200 at 60 Hz
100 feet (30 meters) 1920x1440 at 60 Hz
CAT6 300 feet (91 meters) 1024x768 at 60 Hz
200 feet (61 meters) 1280x1024 at 60 Hz
100 feet (30 meters) 1920x1440 at 60 Hz

VEEMUX SM-32X16-C5AV-LCD

  • Female RJ45 input/output connectors.
  • Analog bandwidth is 175 MHz.
  • 10/100BaseT ethernet interface.
  • Supported protocols: HTTP. HTTPS, Telnet
  • RS232 interface
  • Signal to noise ratio (SNR):
    • Audio: >72dBA
    • Video: >65dB
  • Audio harmonic distortion and noise: <0.06%
  • Video distortion: 70dB @ 10 MHz
Power
MTBF
  • 42,137 hrs.
Cables
  • Use CAT5, CAT5e or CAT6 solid straight through cable for TIA/EIA-568B wiring terminated with standard RJ45 connectors (not included).
Environmental
  • Operating temperature: 32 to 100°F (0 to 38°C).
  • Storage temperature: -20 to 140°F (-30 to 60°C).
  • Operating and Storage Relative Humidity: 17 to 90% non-condensing RH.
Dimensions
Audio/Video Matrix Switch via CAT5
NTI Part # Rack
Units
Size
WxDxH (in)
SM-32X16-C5AV-LCD 2RU 19x12x3.5
Regulatory Approvals
  • CE, RoHS
Warranty
  • Two years

Local Unit (Transmitter)

Video
  • VGA transmitter:
    • Male 15-pin HD connector for input connection.
    • Female 15-pin HD connector for local monitor.
    • Supports resolutions to 1920x1440.
    • Signal to noise ratio: >55dB
    • Distortion: 65dB at 5MHz
  • S-Video transmitter:
    • Male 4-pin miniDIN connector for input connection.
    • Female 4-pin miniDIN connector for local monitor.
    • Supports maximum 800x600 S-Video resolution.
  • HDTV Component Video transmitter:
    • Three RCA plugs for input connection.
    • Three RCA jacks for local monitor.
    • Supports HDTV resolutions to 1080p.
  • Input impedance: 75 Ohms.
  • Maximum input level: 1.45Vp-p.
  • Supports Separate and Composite TTL level sync.
  • Input Sync frequency ranges:
    • Horizontal: 15 to 130 kHz.
    • Vertical: 30 kHz to 150 Hz.
  • Video is DC coupled.
Audio
  • VGA video + audio transmitter: 3.5 mm stereo audio RCA plugs for input connection and 3.5 mm stereo audio jack for local speakers.
  • S-Video + audio transmitter: two RCA plugs for input connection and 3.5 mm stereo audio jack for local speakers.
  • HDTV + stereo audio transmitter: two RCA plugs for input connection and two RCA jacks for local speakers.
  • Input impedance: 10k Ohms.
  • Maximum input levels: 3.1Vp-p (line level).
  • CD quality audio output.
Power

MTBF
NTI Part # MTBF (hrs)
ST-C5VA-L-600 84,189
ST-C5SVA-L-600 86,086
ST-C5CMPSA-L-600 77,426
Environmental
  • Operating temperature: 32 to 100°F (0 to 38°C).
  • Storage temperature: -20 to 140°F (-30 to 60°C).
  • Operating and Storage Relative Humidity: 17 to 90% non-condensing RH.
Regulatory Approvals
  • CE, RoHS
Warranty
  • Two years

Remote Unit (Receiver)

Video
  • VGA receiver:
    • Female 15-pin HD connector.
    • Supports resolutions up to 1920x1440.
    • Signal to noise ratio: >55dB
    • Distortion: 65dB at 5MHz
  • S-Video receiver:
    • Female 4-pin miniDIN connector.
    • Supports maximum 800x600 S-Video resolution.
  • HDTV Component Video receiver:
    • Three RCA jacks.
    • Resolutions: HDTV 480i, 480p, 720i, 720p, 1080i, and 1080p.
  • Video quality adjustment for different lengths of CAT5/5e/6 cable is done automatically.
    • When using CAT6, some degradation may be experienced depending on the length of the cable.
  • Output impedance: 75 Ohms.
  • Maximum output level: 1.45Vp-p.
Audio
  • VGA video + audio receiver: 3.5 mm stereo audio jack.
  • S-Video + audio receiver: 3.5 mm stereo audio jack.
  • HDTV + stereo audio receiver: two RCA jacks.
  • Frequency response: 20 Hz to 20 kHz, ±1dB.
  • Signal-to-Noise Ratio (SNR): 72 dBA.
  • Total Harmonic Distortion and Noise (THD+N): 0.017%
  • Stereo crosstalk: -70 dB.
  • Maximum output levels: 3.1Vp-p (line level).
  • Line level output: supports multimedia speakers.
    • CD quality audio output.
  • Require powered speakers.
Power

MTBF
NTI Part # MTBF (hrs)
ST-C5VA-R-600 82,214
ST-C5SVA-R-600 86,077
ST-C5CMPSA-R-600 83,389
Environmental
  • Operating temperature: 32 to 100°F (0 to 38°C).
  • Storage temperature: -20 to 140°F (-30 to 60°C).
  • Operating and Storage Relative Humidity: 17 to 90% non-condensing RH.
Regulatory Approvals
  • CE, RoHS
Warranty
  • Two years

Distances and Resolutions for CAT5/CAT5e and CAT6 Cables
Cable Distance Maximum Resolution
CAT5/CAT5e 600 feet (183 meters) 1024x768 at 60 Hz
400 feet (122 meters) 1280x1024 at 60 Hz
300 feet (91 meters) 1600x1200 at 60 Hz
100 feet (30 meters) 1920x1440 at 60 Hz
CAT6 300 feet (91 meters) 1024x768 at 60 Hz
200 feet (61 meters) 1280x1024 at 60 Hz
100 feet (30 meters) 1920x1440 at 60 Hz
Front Panel Interface
  • Liquid Crystal Display (LCD) can display all current connections.
  • Locally change input and output selections with front panel buttons.
  • Digital VU-Meter displays audio levels for the currently selected port.
  • Configuration and control can be done using the front panel buttons.
  • Main menu allows the user to:
    • Set serial address.
    • Set serial speed.
    • Set IP address.
    • Set Subnet Mask.
    • Adjust contrast.
    • Force compensation.
    • Show size.
RS232 Control
  • Configuration and control can be done through the serial port.
  • Control the switch using the NTI Switch Control Program with Graphical User Interface (GUI control) via RS232.
  • Selectable baud rate: 1200 through 9600.
    • Baud rate is set via the main menu, serial command, telnet or web page.
Commands
  • CS-causes one INx/OUTx connection to occur.
  • CA-causes all inputs to connect to specified output.
  • RO-reads what input is connected to specified output.
  • CC-save matrix.
  • RC-recall matrix.
  • CB-change baud rate.
  • RV-version information.
  • RU-reads size of matrix, reports number of inputs and number of outputs on specified switch.
  • EA-set the IP address.
  • EM-set the IP mask.
  • EG-set the default gateway.
  • ET-set the webserver timeout.
Ethernet Control
  • Configuration can be done over the Internet via web page or telnet.
Web Server (view product demo)
  • Security is ensured by password and user configurable timeout.
  • Up to 25 users can access the web page at one time.
  • The user can access the following pages:
    • Switch page: allows the user to connect any input to any output, save and recall up to ten connections.
    • Administration pages: administrator can access setup pages, port setting page and update firmware page. Assign names to video and audio inputs and outputs.
    • Password page: allows the user to change the password for accessing the web interface.
    • Help page: documentation on the usage of the web interface.
    • Update Web Server page: globally update the web server to any settings that have been changed.
    • Logout page: view currently active connections and logout of the web interface.
Telnet
  • Security is ensured by password.
  • Commands are similar to RS232 commands.
  • The telnet server listens on ports 2000 and 2005.
    • Port 2000 is for an operator telnet session.
    • Port 2005 is intended for a software control type session.

Application Drawings

  • Audio/Video Matrix Switch via CAT5
    Application Drawing - VEEMUX Audio/Video Matrix Switch via CAT5 with peripherals
    How to route and distribute audio/video up to 600 feet using CAT5 cable instead of bulky coax cables.

Application Notes

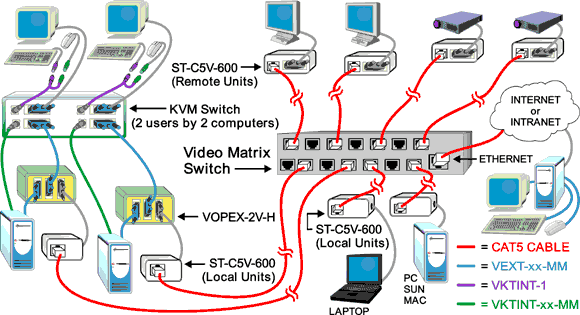

  • Local KVM Switching and Remote Video Presentation Display
    Local KVM Switching and Remote Video Presentation Display
    Two behind the scenes technicians can create and update information from two shared computers connected to a NTI KVM Switch with a local keyboard, monitor and mouse, while a presenter can display any computer's output to any monitor/projector. Video switching is controlled from a PC connected remotely via the Web server. Example application
  • Serial Control using AMX NetLinx® Controller
    Serial Control using AMX NetLinx® Controller
    Control a VEEMUX Audio/Video Matrix Switch using an AMX NI-2100 NetLinx® Controller with a terminal emulator such as HyperTerminal. Use a Null Modem cable to connect the PC COM port to the AMX Program port. For connecting the AMX RS-232 port to the VEEMUX, use a straight thru, DB-9 Male to DB-9 Female cable. For some NTI products, a DB-9 to RJ-45 adapter may be required, refer to the product's User Manual for more information.

    Terminal Session:
    • AMX factory default baud rate: 38400
    • Data Bits: 8
    • Parity: None
    • Stop Bits: 1
    • Flow Control: None

    Type echo on <Enter> to view the characters while entering commands. You should see a ">" command prompt in the terminal window.


    Configuring the AMX RS-232 Port:
    The baud rate of the AMX RS-232 port that is connected to the VEEMUX must be set to match the baud rate of the VEEMUX.
    In the terminal window, type: SEND_COMMAND 5001:1:1,'SET BAUD 9600,N,8,1'<Enter>
    Assumes factory default configuration and AMX RS-232 port 1.


    Testing the connection:
    In the terminal window, type: PASS 5001:1:1<Enter>
    The unit responds with "Entering pass mode."
    In the terminal window, type: ++<Esc>A
    The unit responds with "-- Ascii mode --"


    You should now be able to enter VEEMUX commands:
    In the terminal window, type: RU 01<Enter>
    The unit responds with "*<CR>IP,OP<CR>"
    Where IP is the number of Input Ports and OP is the number of Output Ports on the attached VEEMUX.


    Using the AMX SEND_STRING Command:
    The AMX SEND_STRING command can be used to send a string of characters to the VEEMUX. The string can be any valid VEEMUX command. The AMX controller must not be in Pass Through mode.
    To exit Pass Through mode: In the terminal window, type: ++<Esc><Esc>
    The unit responds with "Exiting pass mode."


    Example: To connect Input 1 to Output 3 on VEEMUX Unit 1.
    In the terminal window, type: SEND_STRING 5001:1:1,"'CS 01,01,03' (31 m),13" (330 mm)
    The VEEMUX should make the connection Input 1 to Output 3, and should indicate on the LCD that the connection has been made.

  • Resetting the Size of a SM-nXm-C5AV-LCD Unit
    Steps to Reset the Size of a SM-nXm-C5AV-LCD Unit:
    1. On the front panel, press the "Menu" button once.
    2. Press and hold the "1", "2", & "3" (in that order until they are all held down). Then release all 3 buttons at the same time.
    3. Press the "Enter" button.
    4. On the lcd on the front panel, it will display a list of 3 options that are as follows:
    • Option 1. Number of inputs - To change the number of inputs, simply press "1" to select the inputs option. Then key in the number of inputs with the front panel buttons (8, 16, or 32). Then press "Enter".
    • Option 2. Number of outputs - To change the number of outputs, simply press "2" to select the outputs option. Then key in the number of outputs with the front panel buttons (8, 16, or 32). Then press "Enter".
    • Option 3. Reset Memory - To reset the unit, simply press "3" to select the reset unit option. This will reset the unit as follows:
      • Unit size will be reset to 16 inputs & 16 outputs
      • Unit ip address will be reset to 192.168.1.1
      • Unit subnet mask will be reset to 255.255.255.0
      • Unit default gateway will be reset to 192.168.1.1
      • Unit administrator login name will be reset to Administrator
      • Unit administrator login password will be reset to admin
    5. After changing the input size, output size, or resetting the unit, turn off power to the unit (power switch on back) for about 30 seconds.
    6. Turn the unit back on & verify unit size has changed correctly by doing the following:
    • Press the "menu" button
    • Press the "9" button (this will make the lcd display the unit size.)

CAD Drawings

  • Audio/Video Matrix Switch via CAT5 (SM-8x8-C5AV-LCD)
    Audio/Video Matrix Switch via CAT5 (SM-8x8-C5AV-LCD)
  • Audio/Video Matrix Switch via CAT5 (SM-8x16-C5AV-LCD)
    Audio/Video Matrix Switch via CAT5 (SM-8x16-C5AV-LCD)
  • Audio/Video Matrix Switch via CAT5 (SM-16x8-C5AV-LCD)
    Audio/Video Matrix Switch via CAT5 (SM-16x8-C5AV-LCD)
  • Audio/Video Matrix Switch via CAT5 (SM-16x16-C5AV-LCD)
    Audio/Video Matrix Switch via CAT5 (SM-16x16-C5AV-LCD)
  • Audio/Video Matrix Switch via CAT5 (SM-32x8-C5AV-LCD)
    Audio/Video Matrix Switch via CAT5 (SM-32x8-C5AV-LCD)

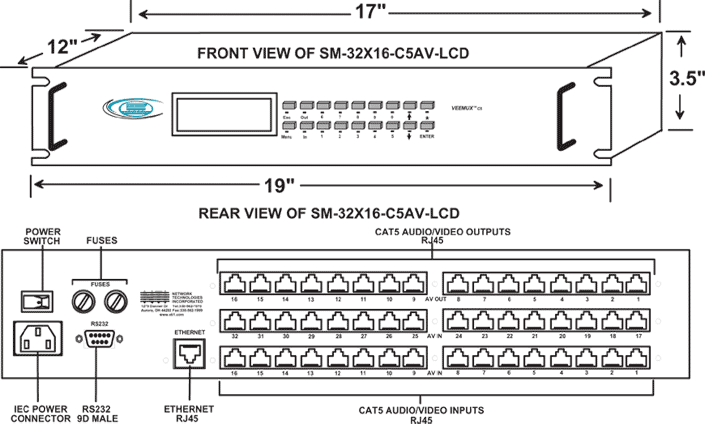

  • Audio/Video Matrix Switch via CAT5 (SM-32x16-C5AV-LCD)
    Audio/Video Matrix Switch via CAT5 (SM-32x16-C5AV-LCD)
  • VGA + Audio Local Transmitter (ST-C5VA-L-600)
    VGA + Audio Local Transmitter (ST-C5VA-L-600)
  • S-Video + Audio Local Transmitter (ST-C5SVA-L-600)
    S-Video + Audio Local Transmitter (ST-C5SVA-L-600)
  • HDTV + Stereo Audio Local Transmitter (ST-C5CMPSA-L-600 )
    HDTV + Stereo Audio Local Transmitter (ST-C5CMPSA-L-600 )
  • VGA + Audio Remote Receiver (ST-C5VA-R-600)
    VGA + Audio Remote Receiver (ST-C5VA-R-600)
  • S-Video + Audio Remote Receiver (ST-C5SVA-R-600)
    S-Video + Audio Remote Receiver (ST-C5SVA-R-600)
  • HDTV + Stereo Audio Remote Receiver (ST-C5CMPSA-R-600)
    HDTV + Stereo Audio Remote Receiver (ST-C5CMPSA-R-600)
  • "As a specialized Trading Firm IT Consultancy, we received an unusual request from our customer. He was asking for the ability to take images from any of his trader's workstations and simultaneously project that image to any one of several screens, plasma displays and electronic whiteboards for all other traders to see.

    While not being familiar at all with such a system, I was tasked to do some exploring. After doing some research we ran across NTI's Web site. The site was very informative and I was able to learn that their video matrix switches allow us to do exactly what the customer was hoping for and more. I then contacted them to help me piece together a customized configuration that would help us. The sales consultant was very helpful and put together a system that met all of our customer's needs. The system included the VEEMUX® SM-16X16-C5VA-LCD video matrix switch, ST-C5V-L-600 local units and ST-C5V-R-600 remote units.

    The installation couldn't have been any easier. The connections were straightforward and the web interface setup was surprisingly intuitive. I firmly believe we had a very unique physical configuration and NTI was able to deliver in every aspect."

    Scott Feagans
    You Just Trade, LLC
    Chicago, IL
  • "Our company was recently asked to perform what seemed to be an impossible request from one of our clients who wanted to remotely view the activity on their associates' Workstations. The job had to be completed within a four-day time span due to the MAC scheduling of our client, and our only options were to use the VGA inputs on each of the monitors that would be viewed by the President and Vice President of this company.

    After calling your company to request information about your products, I was connected with your Associate, a mister Andrew Lorenz.

    The professionalism of Mr. Lorenz was top notch; as he not only immediately understood what I was trying to do, but steered me in the right direction as far as the exact items, product and prices that my company would need to complete the job.

    As we are constantly buying supplies and items from numerous suppliers and manufacturers, it made a huge difference for us to know that we had this kind of support and knowledge behind us. We confidently completed our client's request to their full satisfaction and amazement that we could have accomplished it in such a short time-span and under a deadline.

    I would personally like to thank your company and especially your Associate, Andrew Lorenz, for helping us to complete this job. The quality of the 12 VGA transmitters, the 5 VGA receivers and the 16x8 Matrix Switch is outstanding; and the end result was exactly what we had wanted and were expecting (as well as the expectations of our client)."

    Scott J Mills
    Residential Computer Consultants and Administration
    Saddle Brook, NJ
  • "Coherent Systems has had great success with NTI and their Cat5 Video Matrix Switches. NTI's SM-16X16-C5AV-LCD switch is the only product that is capable of supporting the demands of our military customers. Coupled with the Video Extenders, the Video Matrix Switches have provided us a quality solution that is unrivaled by any competitor.

    Great products matched with excellent customer service are a winning combination, and we here at Coherent Systems look forward to dealing with NTI in the future."

    Justin Stephens
    Coherent Systems
    Uniontown, PA

Audio/Video Matrix Switches via CAT5

NTI Part # A/V Inputs A/V Outputs Weight (lbs) Power Cord Length Price Quote Buy
SM-8X8-C5AV-LCD 8 8 4.5 $3,675.00
SM-8X16-C5AV-LCD 8 16 6.0 $5,145.00
SM-16X8-C5AV-LCD 16 8 6.0 $3,795.00
SM-16X16-C5AV-LCD 16 16 6.5 $5,220.00
SM-32X8-C5AV-LCD 32 8 8.5 $7,470.00
SM-32X16-C5AV-LCD 32 16 8.5 $10,385.00

Transmitters

NTI Part # Supported Features Price Quote Buy
ST-C5VA-L-600 VGA + audio $160.00
ST-C5SVA-L-600 S-Video + audio $213.00
ST-C5CMPSA-L-600 HDTV + stereo audio $165.00

Receivers

NTI Part # Supported Features Price Quote Buy
ST-C5VA-R-600 VGA + audio $165.00
ST-C5SVA-R-600 S-Video + audio $188.00
ST-C5CMPSA-R-600 HDTV + stereo audio $185.00
