Rackmount SUN USB KVM Drawer with High Density VGA USB KVM Switch

How to control up to 8 USB computers from 1RU of rack space.

Also known as: integrated SUN USB KVM drawer and USB switch, KVM switch in rackmount 1RU KVM drawer, 1RU rackmount LCD monitor SUN USB KVM switch.

Rackmount SUN USB KVM Drawer with High Density VGA USB KVM Switch. How to control of up to eight computers from 1RU of rack space.

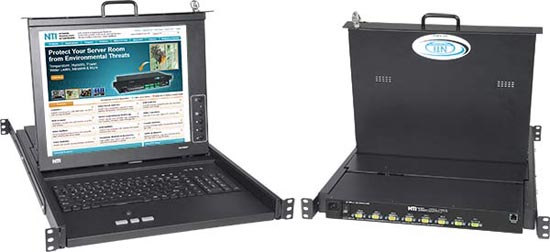

RACKMUX-VS17-NT-8USBHD (Front & Back)

Product Highlights

  • Single-Person Installation
  • Designed and Manufactured in the U.S.A.

Additional Images

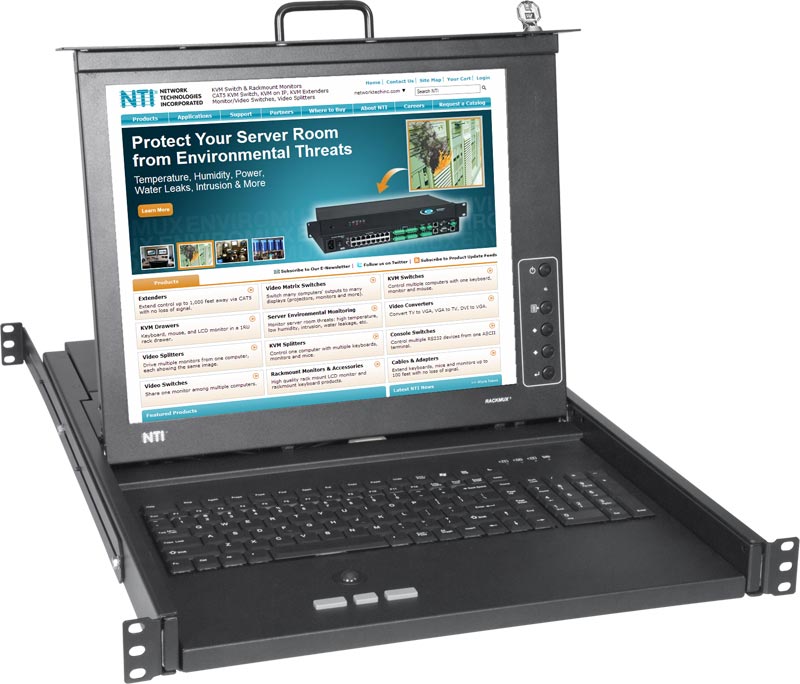

  • RACKMUX-VS17-NT-8USBHD (front)

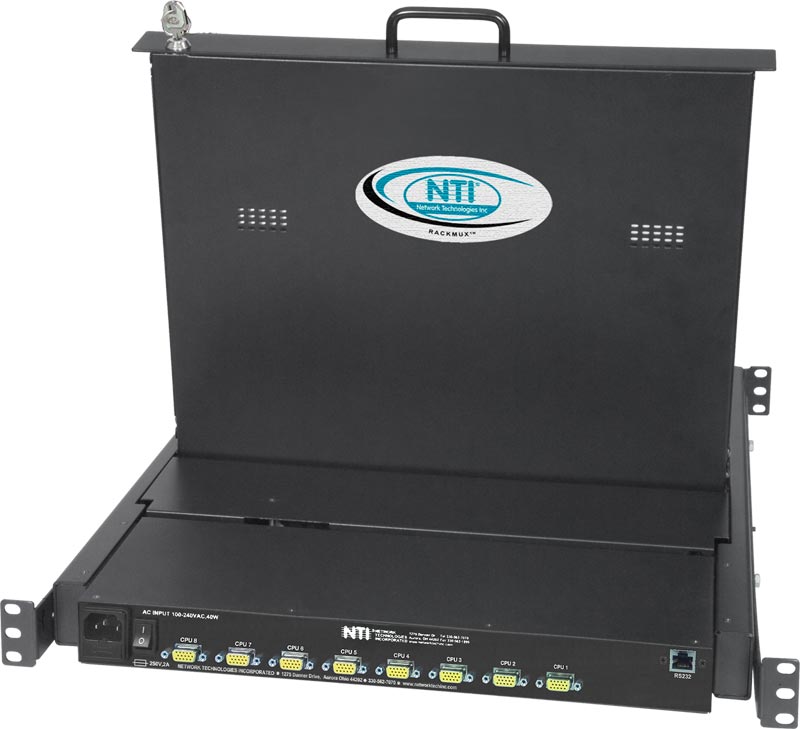

  • RACKMUX-VS17-NT-8USBHD (back)

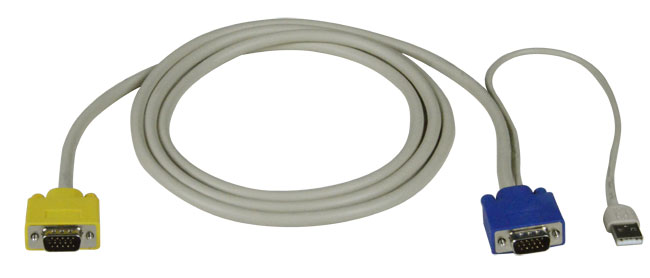

  • HDUSBVEXT-3/10/15-MM: Male 15-pin HD to Male 15-pin HD + Male USB Type A Interface Cable, Gray Cable Jacket

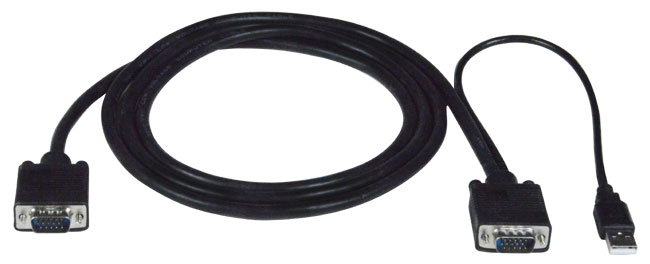

  • HDUSBVEXT-6-MM: Male 15-pin HD to Male 15-pin HD + Male USB Type A Interface Cable, Gray Cable Jacket

The RACKMUX® SUN USB KVM Drawer with Integrated High Density VGA USB KVM Switch combines a rackmount LCD monitor, SUN USB keyboard, trackball mouse, and NTI's UNIMUX™ 8-port High Density VGA USB KVM Switch into a space-saving 1RU industrial strength drawer.

The RACKMUX® SUN USB KVM Drawer with Integrated High Density VGA USB KVM Switch combines a rackmount LCD monitor, SUN USB keyboard, trackball mouse, and NTI's UNIMUX™ 8-port High Density VGA USB KVM Switch into a space-saving 1RU industrial strength drawer.

  • Available with forward-folding 17" (432 mm) TFT/LCD VGA monitor.
  • Crisp and clear 1280x1024 video resolution.
  • Tilt LCD up and back to adjust to any comfortable viewing angle to 120°.
  • Control up to eight USB computers (PC, SUN, and MAC).
  • Compact, heavy-duty tactile keyboard with 17-key numeric keypad.
  • Designed to be a one-person job when installing the drawer.
  • Torque-friction hinges – monitor does not wobble, spring, or slam shut.
  • LCD auto-shutoff in closed position.
  • Drawer locks into place when open to prevent it from sliding out of the rack.
  • Dedicated microprocessors prevent CPUs from locking up, ensuring reliable control.
  • Keyboard available in: English(US).
  • Cabling runs are simplified with NTI's high density KVM switch cables.
Power
  • 100 to 240 VAC at 50 or 60 Hz via IEC connector. (Country-specific power supply cable included.)
  • Power consumption: 40W max.
Dimensions
  • WxDxH: 19x23.9x1.75 Inches (483x607x44 millimeters).
  • Drawer is adjustable to various rack depths from 24" (610 mm) deep to 40" (1,016 mm) deep.
  • Drawer locks into place when open to prevent it from sliding in and out of the rack.
  • Rack ears are available for two post style telco rack mounting, select part number RL-T15-TEL.
Regulatory Approvals
  • CE, RoHS
  • TAA compliant
Environmental
  • Operating temperature: 32 to 104°F (0 to 40°C).
  • Storage temperature: -4 to 140°F (-20 to 60°C).
  • Operating and storage relative humidity: 20 to 90% non-condensing RH.
Warranty
  • Two years

Rackmount SUN USB KVM Drawer Specifications
UNIMUX High Density VGA USB KVM Switch Specifications

Application Drawings

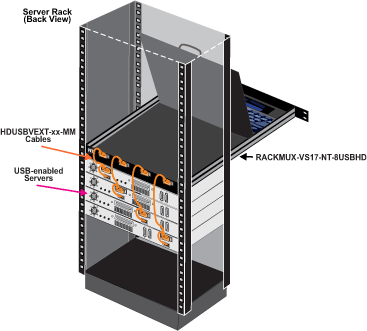

  • Rackmount SUN USB KVM Drawer with High Density VGA USB KVM Switch
    Rackmount KVM Drawer with High Density USB VGA KVM Switch – CAC Card Reader Compatible

CAD Drawings

  • Maximum Tilt Angle Diagram
    Maximum Tilt Angle for RACKMUX KVM and Terminal Drawers
    Maximum Tilt Angle for RACKMUX KVM and Terminal Drawers

Keyboard Layouts

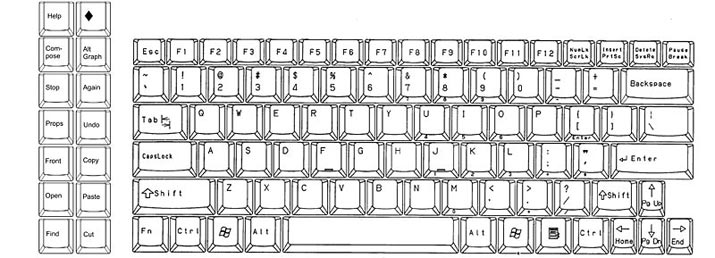

  • RACKMUX-VS17-T-8USBHD
    Rackmount SUN USB KVM Drawer with High Density VGA USB KVM Switch
    Rackmount SUN USB KVM Drawer with High Density VGA USB KVM Switch

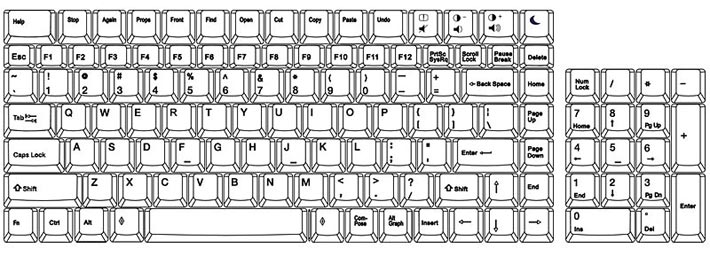

  • RACKMUX-VS17-NT-8USBHD
    Rackmount SUN USB KVM Drawer with High Density VGA USB KVM Switch and Numeric Keypad
    Rackmount SUN USB KVM Drawer with High Density VGA USB KVM Switch and Numeric Keypad

SUN USB KVM Drawers with USB KVM Switch

NTI Part # Mouse Keyboard Features # of CPUs Price Quote Buy
RACKMUX-VS17-T-8USBHD Trackball NA 8 $2,935.00
RACKMUX-VS17-NT-8USBHD Trackball Numeric keypad 8 $2,755.00

Mounting Bracket for Two-Post Style Telco Rack

NTI Part # Description Price Quote Buy
RL-T15-TEL Mounting Bracket for Two-Post Style Telco Rack $25.00

Male 15-pin HD to Male 15-pin HD + Male USB Type A Interface Cable

NTI Part # Length Price Quote Buy
HDUSBVEXT-3-MM 3 ft $9.00
HDUSBVEXT-6-MM 6 ft $24.00
HDUSBVEXT-10-MM 10 ft $30.00
HDUSBVEXT-15-MM 15 ft $51.00
