DVI Extender via One Multimode Fiber Optic Cable up to 3,280 feet

Exceed the maximum DVI length with one fiber optic strand.

Also known as: DVI-D extender, Single Link DVI-D Optical extension, long DVI-D, DVI fiber optic extension system, Fiber Optic extender, DVI-D to fiber optic, exceed maximum DVI cable length, balun.

ST-1FODVI-SC DVI-D Optical Extender up to 1,000 meters
ST-1FODVI-SC (Receiver and Transmitter)
  • HDMI Extender for use with Digital Signage

Additional Images

  • DVII-FF - DVI Female to Female Gender Changer (Sold Separately)
  • FIBER-S-SCSC-50-xM - Compatible Fiber Optic Cable

The XTENDEX® DVI Extender via Fiber Optic Cable locates a single link digital DVI-D display up to 3,280 feet (1,000 meters) from a computer using a single SC multimode (50-micron or 62.5-micron) fiber optic strand. Each extender consists of a transmitter that connects to a computer and a receiver that connects to a monitor.

The XTENDEX® DVI Extender via Fiber Optic Cable locates a single link digital DVI-D display up to 3,280 feet (1,000 meters) from a computer using a single SC multimode (50-micron or 62.5-micron) fiber optic strand. Each extender consists of a transmitter that connects to a computer and a receiver that connects to a monitor.

  • Complies with DVI 1.0 standards.
  • Signal transmission via one strand multimode (50-micron or 62.5-micron) SC fiber optic cable – no RF interference.
  • Small form factor – for easy connection and placement.
  • Cables can be installed in conduit prior to extender installation.
  • Built-in default EDID table can be programmed to support any DVI display device.
  • Low RFI/EMI for sensitive applications.
  • No software to install.
  • The DVI Optical Extender is the ideal solution for a wide range of applications. Examples include:
    • Remote DVI display monitoring for medical, military, aerospace, industrial and traffic control applications.
    • Digital Flat Panel Displays (FPD), Plasma Display Panels (PDP) and projectors in conference rooms and auditoriums.
    • Kiosks with digital FPDs.
    • Color LED signboards, FPDs and PDPs for information display at stadiums.
  • Connectors (for transmitter and receiver):
    • One male DVI-D dual link connector
      • Signal type: single link digital DVI.
    • One female SC fiber connector.
  • Supports resolutions up to 1920x1200 (WUXGA); refer to the resolution chart below for resolutions at different lengths.
  • Built-in default EDID table can be programmed to support any DVI display device.
  • Low RFI/EMI.
  • Laser Class 1 Safety compliant.
  • Optical source: 850 nm VCSEL.
  • Supports 50/125um SC type multi-mode fiber optic cable.
  • Frequency Bandwidth : 1.65Gbps (Single Link)
Dimensions
  • WxDxH: 1.6x2.6x0.6 in (41x66x15 mm)
Power
  • Local unit: powered from attached computer.
  • Remote unit: 100 to 240 VAC at 50 or 60 Hz via AC adapter. (US AC adapter included.)

Distances and Resolutions
Cable Distance Maximum Resolution
50-micron 3,280 feet (1,000 meters) 1024x768 (XGA)
2,300 feet (701 meters) 1280x1024 (SXGA)
1,650 feet (503 meters) 1600x1200 (UXGA)
984 feet (300 meters) 1920x1200 (WUXGA)
62.5-micron 3,280 feet (1,000 meters) 1280x1024 at (SXGA)
2,300 feet (701 meters) 1600x1200 at (UXGA)
1,650 feet (503 meters) 1920x1200 at (WUXGA)
MTBF
  • 91,952 hours.
Cables
  • Use a simplex multimode SC 50-micron OM2/OM3 or 62.5-micron OM1 multimode fiber optic cable to extend the receiver from the transmitter up to 3,280 feet (1,000 meters).
Environmental
  • Operating Temperature: 32 to 122°F (0 to 50°C).
  • Storage Temperature: -4 to 158°F (-20 to 70°C).
Regulatory Approvals
  • CE, FCC, RoHS
  • TAA compliant
Package Includes
  • DVI optical transmitter.
  • DVI optical receiver.
  • One power supply.
  • User manual.
Warranty
  • Two years

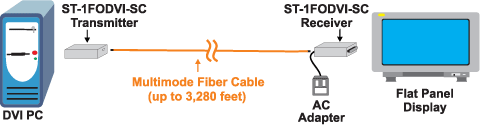

Application Drawings

  • DVI Extender via One Multimode Fiber Optic Cable up to 3,280 feet
    DVI Extender via One Multimode Fiber Optic Cable up to 3,280 feet

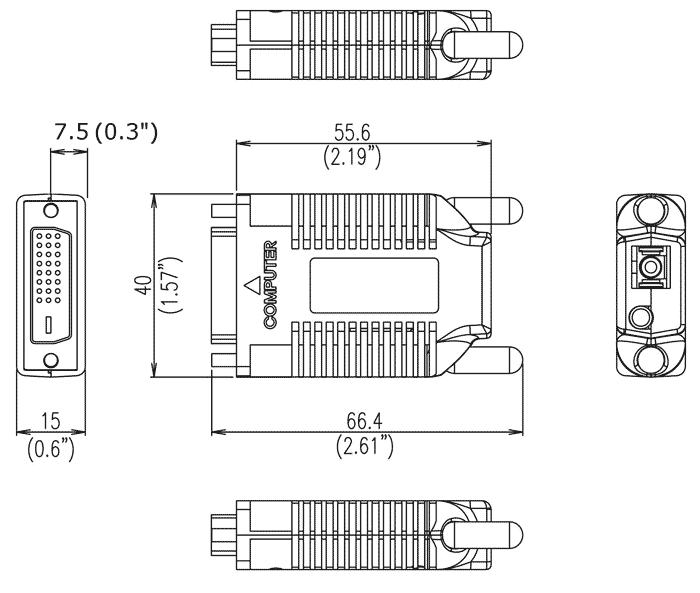

CAD Drawings

  • DVI Extender via One Multimode Fiber Optic Cable up to 3,280 feet - ST-1FODVI-SC
    DVI Extender via One Multimode Fiber Optic Cable up to 3,280 feet - ST-1FODVI-SC

DVI Fiber Optic Extender

NTI Part # Description Price Quote Buy
ST-1FODVI-SC DVI Optical Extender $840.00

DVI Female to Female Gender Changer

NTI Part # Price Quote Buy
DVII-FF $14.00

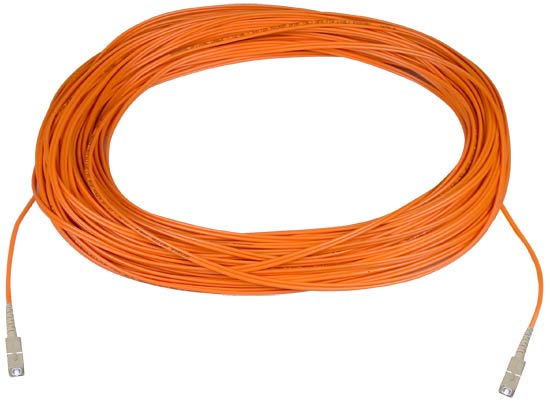

Simplex 50-micron OM2 Multimode SC to SC Fiber Optic Cable

NTI Part # Length Price Quote Buy
FIBER-S-SCSC-50-50M 50 m $32.00
FIBER-S-SCSC-50-100M 100 m $57.00
FIBER-S-SCSC-50-300M 300 m $156.00
FIBER-S-SCSC-50-500M 500 m $258.00
FIBER-S-SCSC-50-700M 700 m $354.00
FIBER-S-SCSC-50-1000M 1000 m $504.00
