Enterprise Environment Monitoring System Management Software

Monitor and configure up to 3,000 ENVIROMUX units, IPDU-S4/8 units and all connected sensors.


Request Server/Client Software Evaluation

(Requires ENVIROMUX unit)

Request Client Software Demo

(Does NOT require ENVIROMUX unit)
E-MNG Enterprise Environment Monitoring System Management Software

Product Highlights

  • Intuitive graphical user interface software
  • Monitor & configure up to 3,000 units and all connected sensors
  • Push changes to all connected units individually or in a group
  • Display values and status for individual or list of sensors
  • Designed and Manufactured in the U.S.A.

Additional Images

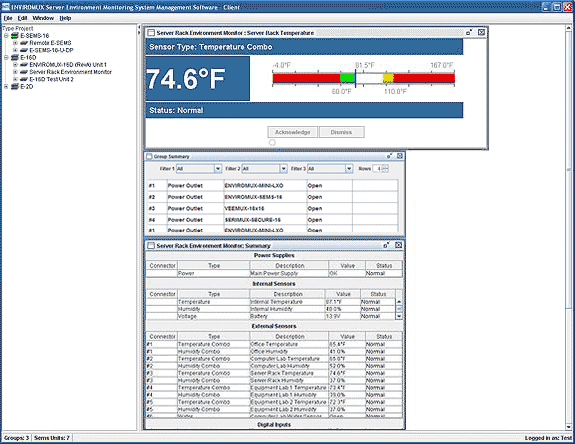

  • Scrolling sensor summary pages can include selected sensors from a specific unit, all units, or a pre-configured group of units.

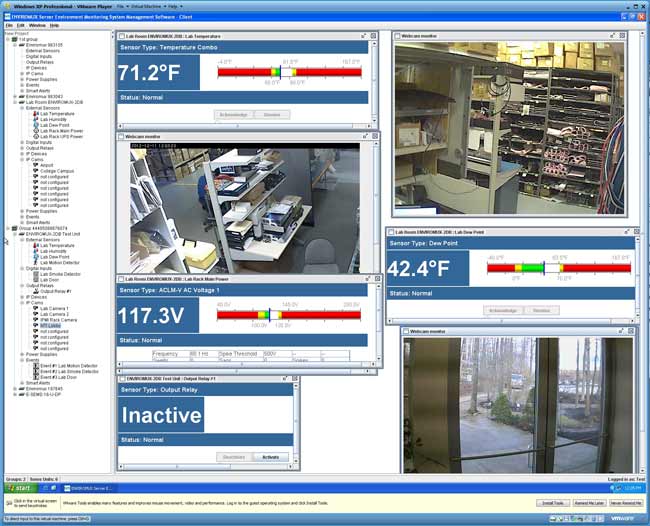

  • E-MNG: Monitor multiple sensors and IP cameras

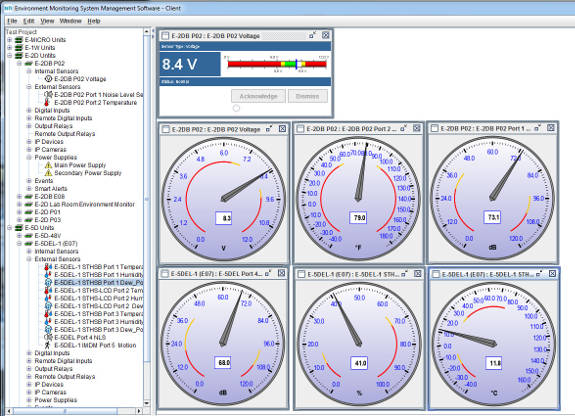

  • E-MNG: View real-time updates for sensor history graph and multiple sensor statuses.

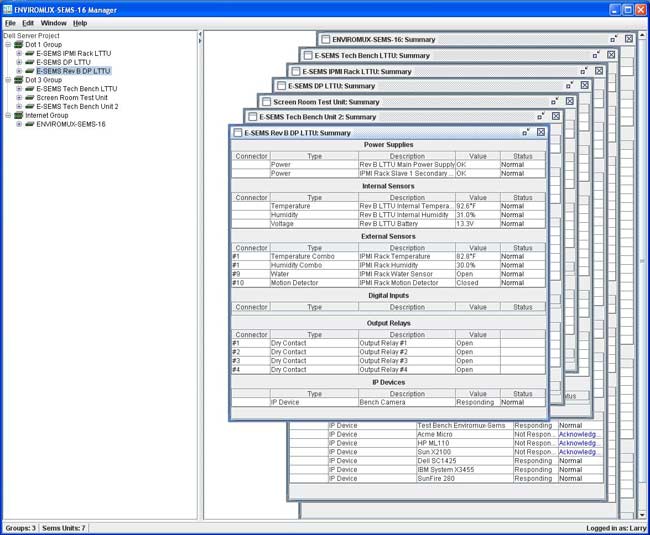

  • E-MNG: Open summary pages for many ENVIROMUX units at once

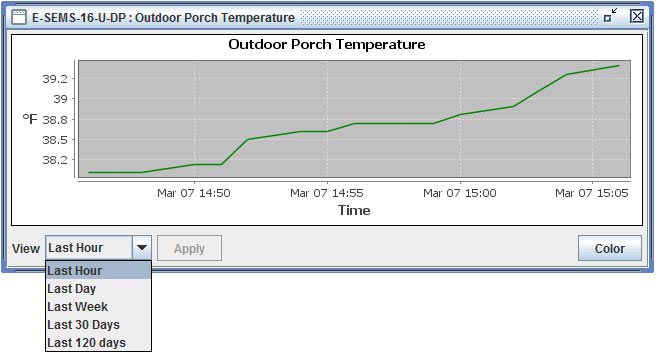

  • E-MNG: Sensor history graph shows readings from up to the last 120 days.

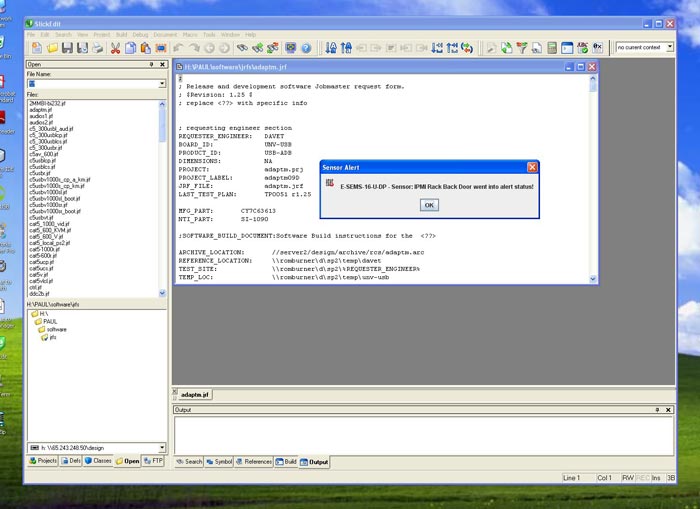

  • E-MNG: Sensor alerts pop-up even when working in a different program

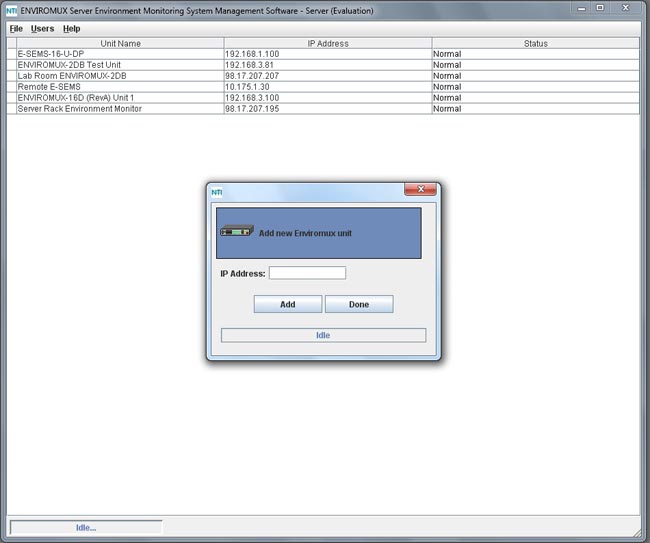

  • E-MNG: Add new ENVIROMUX units using server application

Optional Management Software for E-2D/5D/16D, E-MICRO-T(RHP), E-1W(P), E-SEMS-16(U), and IPDU-S4/8 units.

Optional Management Software for E-2D/5D/16D, E-MICRO-T(RHP), E-1W(P), E-SEMS-16(U), and IPDU-S4/8 units.


  • Intuitive graphical management software provides an easy-to-use, unified interface for both monitoring and configuring up to 3,000 E-2D/5D/16D, E-MICRO-T(RHP), E-1W(P), E-SEMS-16(U), IPDU-S4/8 units and all connected sensors via Ethernet.
    • E-2D: only compatible with Rev C units (features two power inputs).
    • Not compatible with Advanced-Cascade Configuration of E-2D/5D/16D units.
    • When using with E-SEMS-16(U), must use software v2.7 or older and Java 1.7 or older.
  • Units may be monitored and configured individually or in a group.
    • Changes can be pushed to all units in a group at once.
      • E.g. new users, mail server, network settings, security settings, system settings, etc.
  • Display values and status for individual sensors or list of sensors.
  • Scrolling sensor summary pages can include selected sensors from a specific unit, all units, or a pre-configured group of units.
    • Filter specific sensors from multiple units for close monitoring.
  • Sensor history graph shows readings from up to the last 120 days.
  • Client/server architecture
    • Server application actively polls all units for status information as well as listen for alerts from all units.
    • Client application communicates with the server to read statuses and to deploy configuration changes.
  • Multiplatform support: Windows 2000/XP/Vista/7/8/10, Windows Server 2000/2003/2008/2012, Solaris, Linux, FreeBSD, and MAC OS 9/10.
  • Requires Java Runtime Environment 1.5 or later.
  • NTI will provide customer, without charge, copies of any appropriate updates/enhancements for 12 months. This software update service is optionally extendable every twelve months for 20% of list price.
Request Server/Client Software Evaluation
(Requires ENVIROMUX unit)
Request Client Software Demo
(Does NOT require ENVIROMUX unit)

Application Drawings

  • Enterprise Server Environment Monitoring System Management Software

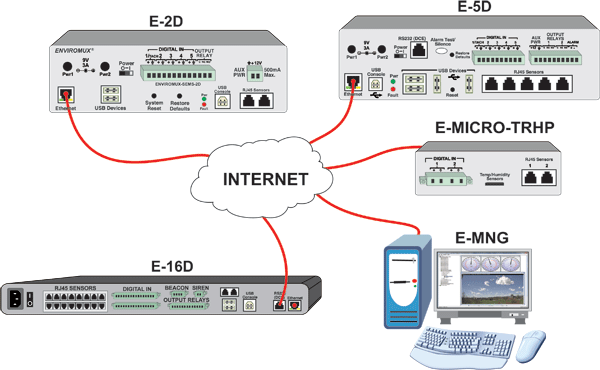

    Configuration and cable illustration of Enterprise Environment Monitoring System
    How to connect and control up to 3,000 E-2D/5D/16D, E-SEMS-16(U), and IPDU-S4/8 units via Ethernet
  • "The E-MS-SEMS0010 is an easy to use user interface and is very flexible. Alarms can be noticed easily."

    Dejan Cakik
    CAD Security Systems
    Skopje, Macedonia

Enterprise Environment Monitoring System Management Software Supports E-2D/5D/16D, E-MICRO/1W, E-SEMS-16(U) and IPDU-S4/8

NTI Part # Description Price Quote Buy
E-MNG-0010 Manage 10 ENVIROMUX and IPDU units $500.00
E-MNG-0050 Manage 50 ENVIROMUX and IPDU units. $1,565.00
E-MNG-0100 Manage 100 ENVIROMUX and IPDU units. $2,500.00
E-MNG-0500 Manage 500 ENVIROMUX and IPDU units. $4,690.00
E-MNG-3000 Manage 3000 ENVIROMUX and IPDU units. $7,500.00
