Low-Cost Mini HDMI Extender via Two CAT5e/6/6a

Extend an HDMI display up to 150 feet

Also known as: HDMI extender, Media center extender, Set-top box extender, cat6 HDMI monitor extender, remote digital HDMI monitor, HDMI transmitter/receiver, high definition extender, extend 1080p video, HDMI balun, HDMI transition to CAT5.

Mini HDMI Extender via Two CAT5e/6
XTENDEX® ST-C5HD-MINI-ULC (Local and Remote Units)

Product Highlights

  • WUXGA/1080p video resolutions
  • No power supply
  • Compact size
  • HDMI Extender for use with Digital Signage

Additional Images

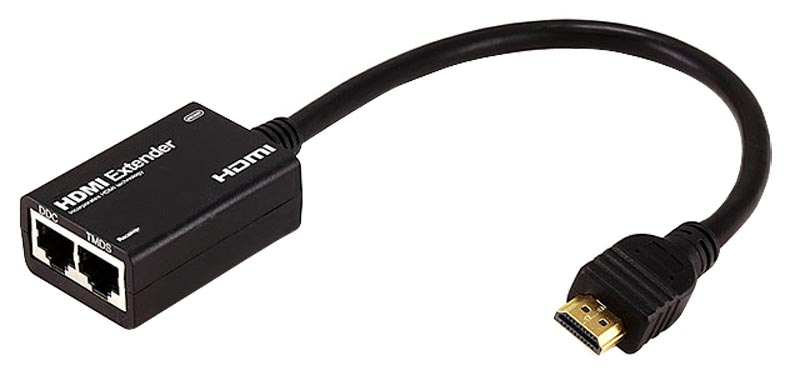

  • ST-C5HD-MINI-ULC (Receiver) – Low-Cost Mini HDMI Extender via Two CAT5e/6/6a

The XTENDEX® Mini HDMI Extender transmits digital video and audio signals up to 150 feet using two CAT5e/6/6a cables. Each extender consists of a local unit that connects to an HDMI source and a remote unit that connects to an HDMI display.

The XTENDEX® Mini HDMI Extender transmits digital video and audio signals up to 150 feet using two CAT5e/6/6a cables. Each extender consists of a local unit that connects to an HDMI source and a remote unit that connects to an HDMI display.

  • Supports HDTV resolutions to 1080p and computer resolutions to 1920x1200.
  • Transmits an HDMI signal over two CAT5e/6/6a cables.
    • Extend up to 100 feet with UTP CAT5e/6 cable.
    • Extend up to 150 feet with UTP CAT6a cable.
  • HDMI features supported:
    • 24-bit Deep color
    • DTS® Digital, DTS-HD Master Audio™, Dolby TrueHD™, LPCM
    • Bandwidth up to 165 MHz (1.65 Gbps).
  • HDCP compliant.
  • No power supply is necessary.
  • No software required.

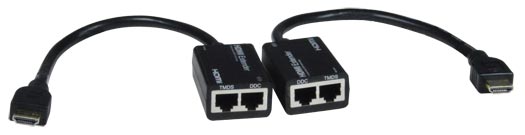

Local Unit
  • Compatible with a computer or HDTV video source with HDMI output.
  • One male HDMI connector for source connection.
  • One female RJ45 port for sending high definition video/audio signals.
  • One female RJ45 port for sending DDC signal.
Remote Unit
  • One male HDMI connector for display.
  • One female RJ45 port for receiving high definition video/audio signals.
  • One female RJ45 port for receiving DDC signal.
  • Supports HDTV resolutions to 1080p and computer resolutions to 1920x1200.
  • Supports embedded digital audio through HDMI compatible TVs or audio receivers.
Dimensions
  • WxDxH: 2.13x1.44x0.84 in (54x37x21 mm) with 8-inch (203-mm) male HDMI cable attached (local and remote unit).
Max Distance
  • 150 feet (46 meters) over two CAT5e/6/6a cables.
Cables
  • Use CAT5e/6/6a UTP straight through cable for TIA/EIA-568B wiring terminated with standard RJ45 connectors.
    • Extend 1080p resolution up to 100 feet with UTP CAT5e/6 cable.
    • Extend 1080p resolution up to 150 feet with UTP CAT6a cable.
  • Cables not included.
Environmental
  • Operating temperature: 32 to 158°F (0 to 70°C).
  • Storage temperature: 14 to 176°F (-10 to 80°C).
  • Operating and storage relative humidity: 5 to 85% non-condensing RH.
Regulatory Approvals
  • CE, FCC, RoHS
Warranty
  • Two years.

Application Drawings

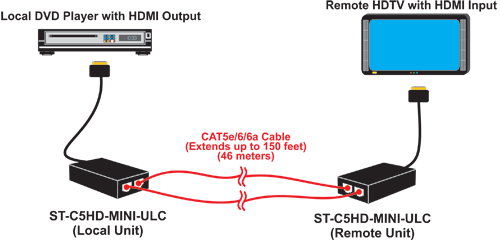

  • Mini HDMI Extender via two CAT5e/6/6a
    Mini HDMI Extender via two CAT5e/6/6a
    How to extend an HDMI display up to 150 feet

Mini HDMI Extender via Two CAT5e/6/6a

NTI Part # Description Price Quote Buy
ST-C5HD-MINI-ULC Mini HDMI Extender $42.00
