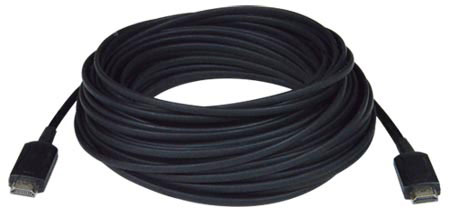

4K 18Gbps HDMI Active Optical Cable – CE/FCC/RoHS Compliant
Extend a 4Kx2K 60Hz 4:4:4 HDMI display up to 100 meters (328 feet)
XTENDEX® HD4K18GB-FO-20M-MM
Additional Images
Product Highlights
- Extend Ultra-HD 4Kx2K 60Hz 4:4:4 to 100 meters
- HDCP 2.2
- No power supply required
The XTENDEX® 4K HDMI Active Optical Cable locates an Ultra-HD 4Kx2K 60Hz 4:4:4 HDMI display up to 100 meters (328 feet) from a video source. Using optical fiber, the HD4K18GB-FO-xxM-MM provides high reliability HDMI signal transmission with zero signal loss in high noise environments.
The XTENDEX® 4K HDMI Active Optical Cable locates an Ultra-HD 4Kx2K 60Hz 4:4:4 HDMI display up to 100 meters (328 feet) from a video source. Using optical fiber, the HD4K18GB-FO-xxM-MM provides high reliability HDMI signal transmission with zero signal loss in high noise environments.
- High speed and long distance transmission by optical system up to 100 meters (328 feet).
- Hybrid cable containing both fiber optic and copper cores.
- Supports Ultra-HD 4Kx2K resolutions to 4096x2160 (60Hz), 2K resolution 2048x1080, HDTV resolutions to 1080p, and computer resolutions to 1920x1200.
- No loss of signal – delivering crystal clear digital images instantly.
- HDCP 2.2 compliant.
- No external power required.
- HDMI features supported:
- HDMI 2.0
- YUV 4:4:4
- Dolby TrueHD, DTS-HD Master Audio, Dolby Digital, and DTS
- Bandwidth: 6Gbps per channel (18Gbps total)
- Supports ARC, HEC and CEC.
- 3D
- Lip Sync
- Optical fibers immune to signal noise.
- Supports Plug-n-Play specification.
- EDID learning for the support of any HDMI display device.
- Thin and ultra-lightweight construction.
- Ideal solution for many applications, including:
- Digital Signage
- Medical Imaging Equipment
- Airplane On-board Video System
- Home Theater
- TV Broadcast Station
- Conference Room Video Equipment

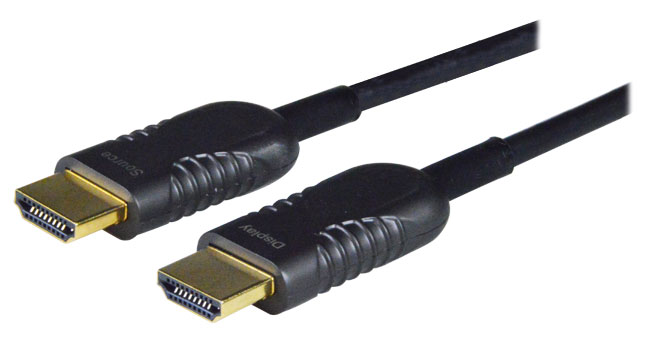

- Connectors: Male HDMI Type A connectors.
- Resolutions: supports resolutions up to Ultra-HD 4Kx2K 4:4:4 (4096x2160@60Hz).
- Supports HDCP 2.2/1.4
- Frame rate: 60fps
- Video bandwidth: 6Gbps per channel (18Gbps total)
- Cable Diameter: 0.186 in (4.72mm)
- Connector Width: 0.78 in (19.74mm)
- Bend radius: up to 48mm (1.89 in)
- Cable construction: 4 fiber cores and 7 copper conductors
- Cable jacket: PVC
- Available lengths: 10/15/20/25/30/50/70/100 meters
Power
- +5V passive power, supplied through pin 18 on the HDMI connection from the source device.
- The +5V connection, as well as powering the internal fiber optic module, is carried through to the other sink via a full standard copper connection.
- Source device must be capable of delivering more than 500mA.
Environmental
- Operating temperature: 14 to 122°F (-10 to 50°C)
- Storage temperature: -4 to 140°F (-20 to 60°C).
- Operating and storage humidity: 10% to 80% non-condensing RH.
Regulatory Approvals
- CE, FCC, RoHS
Warranty
- Two years
Compatible NTI Products
- Combine NTI's extenders, switches, splitters and cables for complex applications.
- 4K 18Gbps Mini DisplayPort Male to HDMI Female Adapter Cable (DPMM-HD4K18GBF)
