VGA USB KVM Switch: 2, 4, 8, 16 and 32-Port

How to control up to 32 USB computers with one USB keyboard, USB mouse & VGA monitor

Also known as: Industrial USB KVM switch, usb kvm switch, UNIMUX usb kvm switch, usb switch, universal serial bus kvm switch.

HDMI USB KVM Extender over HDBase-T

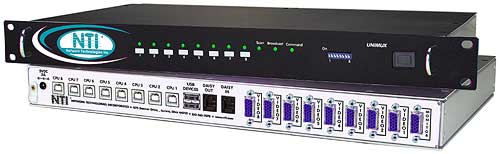

UNIMUX-USBV-8O-RS (Front & Back)

Product Highlights

  • World's Only True 16/32-port VGA USB KVM Switch
  • Designed and Manufactured in the U.S.A.

Additional Images

  • UNIMUX-USBV-4O (Front & Back)
  • UNIMUX-USBV-16O (Front & Back)
  • UNIMUX-USBV-32O (Front & Back)
  • USB-SUN-R – SUN to USB Adapter

The UNIMUX™ VGA USB KVM Switch allows a user to control up to 32 USB computers with one USB keyboard, USB mouse and VGA monitor. Dedicated internal microprocessors emulate keyboard & mouse presence to each attached CPU 100% of the time so all computers boot error-free.

The UNIMUX™ VGA USB KVM Switch allows a user to control up to 32 USB computers with one USB keyboard, USB mouse and VGA monitor. Dedicated internal microprocessors emulate keyboard & mouse presence to each attached CPU 100% of the time so all computers boot error-free.

  • High quality construction.
  • Features NTI's patented true autoboot USB switching – all attached USB PCs, MACs and SUNs can be booted simultaneously.
  • Compatible with USB-enabled PCs.
  • Compatible with SUN T1000, SUN 1000, SUN V210, SUN Fire™ V240, SUN Fire V20z, and other USB-enabled SUN computers.
  • Compatible with MAC G4/G5 and Xserve. Supports MAC soft (keyboard) power-on.
  • Crisp and clear 2048x1536 video resolution.
  • Fully compliant with USB standards (1.0, 1.1).
  • USB MAC and SUN start-up keys are supported.
  • SUN extra keys are emulated on USB keyboards with Windows keyboard layouts.
  • Available with RS232 control option (8-port model only).
  • Supports international keyboard layouts in auto-detection mode.
Hosts
  • Two female 15-pin HD and two female USB Type B connectors.
  • Supports USB-enabled PC, SUN and MAC computers with VGA video.
  • Multiplatform support: Windows 7/8/10/11, Windows Server 2008/2012/2016/2019/2022, Solaris, Linux, FreeBSD, and MAC OS 10/11/12/13.
  • Any legacy SUN computer can be connected by using a USB-SUN-R adapter.
Monitor
  • Crisp and clear resolution up to 2048x1536.
  • Female 15 pin HD connectors.
  • A multiscan VGA monitor is required to display the different video outputs from different platforms.
  • Bandwidth is 150 MHz.
MTBF
  • 79,187 hrs.
Regulatory Approvals
  • CE, RoHS
  • TAA compliant.
Warranty
  • Two years
Power
  • 100 to 240 VAC at 50 or 60 Hz via AC adapter.
  • Power consumption: 5 W
Devices
  • Female USB Type A connectors.
  • Compatible with most USB keyboards and mice, including wireless.
  • Keyboard and mouse are hot-pluggable.
  • Supports two USB devices directly connected.
  • Supports up to eight USB devices using USB hubs (not included).
Environmental
  • Operating temperature: 32 to 100°F (0 to 38°C)
  • Storage temperature: -22 to 140°F (-30 to 60°C)
  • Operating and Storage Relative Humidity: 5 to 90% non-condensing RH.
Hosts
  • Four female 15-pin HD and four female USB Type B connectors.
  • Supports USB-enabled PC, SUN and MAC computers with VGA video.
  • Multiplatform support: Windows 7/8/10/11, Windows Server 2008/2012/2016/2019/2022, Solaris, Linux, FreeBSD, and MAC OS 10/11/12/13.
  • Any legacy SUN computer can be connected by using a USB-SUN-R adapter.
Monitor
  • Crisp and clear resolution up to 2048x1536.
  • Female 15 pin HD connectors.
  • A multiscan VGA monitor is required to display the different video outputs from different platforms.
  • Bandwidth is 150 MHz.
MTBF
  • 75,190 hrs.
Regulatory Approvals
  • CE, RoHS
  • TAA compliant.
Warranty
  • Two years
Power
  • 100 to 240 VAC at 50 or 60 Hz via AC adapter for UNIMUX-USBV-4O.
  • 100 to 240 VAC at 50 or 60 Hz via IEC connector for UNIMUX-USBV-4ORS.
  • Power consumption: 5 W
  • Add -48V5V2A, optional internal DC-DC converter to install the UNIMUX-USBV-4ORS in a Telecom environment.
Devices
  • Female USB Type A connectors.
  • Compatible with most USB keyboards and mice, including wireless.
  • Keyboard and mouse are hot-pluggable.
  • Supports two USB devices directly connected.
  • Supports up to eight USB devices using USB hubs (not included).
Environmental
  • Operating temperature: 32 to 100°F (0 to 38°C)
  • Storage temperature: -22 to 140°F (-30 to 60°C)
  • Operating and Storage Relative Humidity: 5 to 90% non-condensing RH.
Hosts
  • Eight female 15-pin HD and eight female USB Type B connectors.
  • Supports USB-enabled PC, SUN and MAC computers with VGA video.
  • Multiplatform support: Windows 7/8/10/11, Windows Server 2008/2012/2016/2019/2022, Solaris, Linux, FreeBSD, and MAC OS 10/11/12/13.
  • Any legacy SUN computer can be connected by using a USB-SUN-R adapter.
Monitor
  • Crisp and clear resolution up to 2048x1536.
  • Female 15 pin HD connectors.
  • A multiscan VGA monitor is required to display the different video outputs from different platforms.
  • Bandwidth is 150 MHz.
MTBF
  • 60,900 hrs.
Regulatory Approvals
  • CE, RoHS
  • TAA compliant.
Warranty
  • Two years
Power
Devices
  • Female USB Type A connectors.
  • Compatible with most USB keyboards and mice, including wireless.
  • Keyboard and mouse are hot-pluggable.
  • Supports two USB devices directly connected.
  • Supports up to eight USB devices using USB hubs (not included).
Environmental
  • Operating temperature: 32 to 100°F (0 to 38°C)
  • Storage temperature: -22 to 140°F (-30 to 60°C)
  • Operating and Storage Relative Humidity: 5 to 90% non-condensing RH.
Hosts
  • Sixteen female 15-pin HD and sixteen female USB Type B connectors.
  • Supports USB-enabled PC, SUN and MAC computers with VGA video.
  • Multiplatform support: Windows 7/8/10/11, Windows Server 2008/2012/2016/2019/2022, Solaris, Linux, FreeBSD, and MAC OS 10/11/12/13.
  • Any legacy SUN computer can be connected by using a USB-SUN-R adapter.
Monitor
  • Crisp and clear resolution up to 2048x1536.
  • Female 15 pin HD connectors.
  • A multiscan VGA monitor is required to display the different video outputs from different platforms.
  • Bandwidth is 150 MHz.
MTBF
  • 39,250 hrs.
Regulatory Approvals
  • CE, RoHS
  • TAA compliant.
Warranty
  • Two years
Power
  • 100 to 240 VAC at 50 or 60 Hz via AC adapter.
  • Power consumption: 15 W
  • Use the PWR-48V-5V2A DC-DC power converter to install the UNIMUX-USBV-16 in a Telecom environment.
Devices
  • Female USB Type A connectors.
  • Compatible with most USB keyboards and mice, including wireless.
  • Keyboard and mouse are hot-pluggable.
  • Supports two USB devices directly connected.
  • Supports up to eight USB devices using USB hubs (not included).
Environmental
  • Operating temperature: 32 to 100°F (0 to 38°C)
  • Storage temperature: -22 to 140°F (-30 to 60°C)
  • Operating and Storage Relative Humidity: 5 to 90% non-condensing RH.
Hosts
  • Thirty-two female 15-pin HD and thiry-two female USB Type B connectors.
  • Supports USB-enabled PC, SUN and MAC computers with VGA video.
  • Multiplatform support: Windows 7/8/10/11, Windows Server 2008/2012/2016/2019/2022, Solaris, Linux, FreeBSD, and MAC OS 10/11/12/13.
  • Any legacy SUN computer can be connected by using a USB-SUN-R adapter.
Monitor
  • Crisp and clear resolution up to 2048x1536.
  • Female 15 pin HD connectors.
  • A multiscan VGA monitor is required to display the different video outputs from different platforms.
  • Bandwidth is 150 MHz.
MTBF
  • 39,250 hrs.
Regulatory Approvals
  • CE, RoHS
  • TAA compliant.
Warranty
  • Two years
Power
  • 100 to 240 VAC at 50 or 60 Hz via AC adapter.
  • Power consumption: 15 W
  • Use the PWR-48V-5V4A DC-DC power converter to install the UNIMUX-USBV-32 in a Telecom environment.
Devices
  • Female USB Type A connectors.
  • Compatible with most USB keyboards and mice, including wireless.
  • Keyboard and mouse are hot-pluggable.
  • Supports two USB devices directly connected.
  • Supports up to eight USB devices using USB hubs (not included).
Environmental
  • Operating temperature: 32 to 100°F (0 to 38°C)
  • Storage temperature: -22 to 140°F (-30 to 60°C)
  • Operating and Storage Relative Humidity: 5 to 90% non-condensing RH.
Keyboard
  • Use the keyboard to command the switch box to select ports or configure the SCAN delay.
Front Panel Interface
  • Touch a button and be connected to a computer, or change modes of operation.
  • LEDs indicate currently selected port and mode of operation.
On Screen Display (OSD)
  • Select computers by name with the On Screen Display (OSD) option. Not available on the 2-port switch.
  • Use keyboard or mouse to operate the switch from menus superimposed onto the monitor.
  • Shows names of computers on cascaded switches up to 152 ports.
  • Names can be up to 12 characters long.
  • Power status of each computer is displayed.
  • View usage statistics – power-on cycles and hours of usage.
  • Helps screens assists users with the OSD.
  • Modify the size and position of the OSD.
  • OSD is built into the switch-no need to install additional hardware or software.
  • OS and software-independent.
Security
  • Advanced security included with OSD option.
  • Each user password can be up to 13 characters long, and each switch can store up to 63 users.
  • Administrator can enable or disable all security features and select which computers each user can access.
  • Once security is enabled, a user or administrator must login in order to access any of the computers connected to the switch.
RS232 Control
  • Control:
    • Female DB9 connector.
    • Baud rate 300 through 9600, DIP switch selectable.
    • Use DIP switches to address up to 15 units, all of which can be daisy-chained and controlled by one serial port.
    • Seven segment displays show what input is connected to each output.
  • Commands
    • RS – causes switch to reset so that IN1 connects to OUT1, IN2 connects to OUT2.
    • CS – causes one INx/OUTx connection to occur.
    • CA – causes all inputs to connect to specified output.
    • RO – reads what input is connected to specified output.
    • RU – reads size of matrix, reports number of inputs and number of outputs on specified switch.
SUN to USB Adapter
  • The USB-SUN-R adapter connects a legacy SUN computer to an NTI USB KVM switch.
  • Two female USB Type A and one male 8-pin miniDIN connectors.
  • One-meter male USB Type A to male USB Type B cable is included.
  • Dimensions WxDxH (in): 2x3.7x1.1

Application Drawings

  • VGA USB KVM Switch
    USB KVM Matrix Switch
    How to control up to 32 USB computers with one USB keyboard, USB mouse & VGA monitor

Application Notes

  • Control Multiple USB Computers Located 1,000 Feet Away Using CAT5 UTP Cable
    Control Multiple Computers Connected to a Switch Using a KVM Drawer
    Control multiple computers connected to a UNIMUX USB KVM Switch using the RACKMUX KVM Drawer.

CAD Drawings

  • USB KVM Switch Control up to 4 USB computers (UNIMUX-USBV-4O)
    USB KVM Switch Control up to 4 USB computers (UNIMUX-USBV-4O)
  • USB KVM Switch Control up to 8 USB computers (UNIMUX-USBV-8O)
    USB KVM Switch Control up to 8 USB computers (UNIMUX-USBV-8O)
  • USB KVM Switch with RS232 Control up to 8 USB computers (UNIMUX-USBV-8ORS)
    USB KVM Switch with RS232 Control up to 8 USB computers (UNIMUX-USBV-8ORS)
  • USB KVM Switch Control up to 16 USB computers (UNIMUX-USBV-16O)
    USB KVM Switch Control up to 16 USB computers (UNIMUX-USBV-16O)
  • USB KVM Switch Control up to 32 USB computers (UNIMUX-USBV-32O)
    USB KVM Switch Control up to 32 USB computers (UNIMUX-USBV-32O)
