DVI KVM Switch

Control two single link DVI-enabled PCs from one PS/2 keyboard, PS/2 mouse, and one or two DVI monitors.

Also known as: DVI KVM switch, 2 port PC Switch for DVI Flat Panel Display Monitors, keyboard DVI monitor mouse switch.

DVI KVM Switch - 2-Port

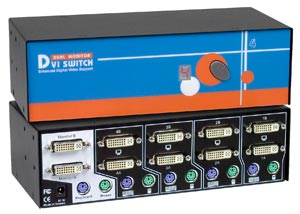

KEEMUX-PD-2 (Front & Back)

Additional Images

  • KEEMUX-P2D-2 - 2-Port PS/2 KVM Switch
  • Designed and Manufactured in the U.S.A.

The KEEMUX® DVI KVM switch allows you to control two single link DVI-enabled PCs with one or two DVI monitors, one PS/2 keyboard and one PS/2 mouse.

The KEEMUX® DVI KVM switch allows you to control two single link DVI-enabled PCs with one or two DVI monitors, one PS/2 keyboard and one PS/2 mouse.

  • Dual monitor DVI KVM switch is available.
  • All attached PCs can be booted simultaneously.
  • 1600x1200 video resolution.
  • Supports DVI interface for crisp and clear video quality on Flat Panel Display.
  • Front-panel push button and hotkeys for channel selection.
  • LED display on switch shows which port is active.
  • Auto Scan all PCs to catch system failures early.
  • Rugged metal enclosure.
Hosts
  • KEEMUX-PD-2: compatible with PS/2-style computers.
  • KEEMUX-P2D-2: compatible with PS/2-style computers with dual video outputs.
  • Supports DOS, Win3.X, Win95/98/ME/NT/2000/XP.
  • Female DVI-I single link connectors.
  • Female 6-pin miniDIN connectors.
DVI Flat Panel Display Monitor
  • KEEMUX-PD-2: female DVI-I single link connectors.
  • KEEMUX-P2D-2: female DVI-I single link connectors.
  • Resolution through 1600x1200.
Keyboard
  • Female 6-pin miniDIN connector.
Mouse
  • Female 6-pin miniDIN connector.
  • Compatible with all standard 2-button PS/2 mice.
Power
  • Powered from attached computers.
Regulatory Approvals
  • CE
  • FCC
  • RoHS (KEEMUX-P2D-2 only).
Cables
  • Interface cables between your PCs and the switch are required for proper operation. Use DVI-IS-xx-MM and VVKINT-xx-MM to connect computers to the switch.
Front Panel Interface
  • LEDs indicate currently selected port.
  • Scan Mode feature causes the switch to automatically and sequentially display the video from each powered-on computer.
Keyboard
  • Hotkey commands to switch ports.
  • Scan Mode available from the keyboard.

Application Drawings

  • DVI KVM Switch
    DVI KVM Switch - Application Drawing
    How to control two single link DVI-enabled PCs from one PS/2 keyboard, PS/2 mouse and DVI monitor.
  • "I have using NTI products for personal use for 10 years. I continue to purchase NTI products because of the quality of the products and the excellent technical support. I always get a valid answer, even if it is not always the one I like "that will not work and why it will not work". If I am told it will work, I am told the correct steps to solve the problem or obtain the desired functionality. Any answer to a question I have received has always been technically correct, which allows me to make informed decisions. I also have never been told just "get a new box" without a valid technical reason why the existing box was not or could not function as expected/desired."

    Eric Bruno
    Avaya
    Santa Clara, CA

DVI KVM Switches

NTI Part # Description Price Quote Buy
KEEMUX-PD-2 2-port DVI KVM switch $150.00
KEEMUX-P2D-2 2-port dual monitor DVI KVM switch $175.00

DVI-I Male to Male Single Link Extension Cable

NTI Part # Length Price Quote Buy
DVI-IS-3-MM 3 feet $6.50
DVI-IS-6-MM 6 feet $10.35
DVI-IS-10-MM 10 feet $13.70
DVI-IS-15-MM 15 feet $16.60

PS/2 Male-Male Keyboard and Mouse Cable

NTI Part # Length Price Quote Buy
VVKINT-3-MM 3 feet $7.00
VVKINT-6-MM 6 feet $8.00
VVKINT-10-MM 10 feet $9.00
