Video Splitter, VGA Monitor Splitter Hub

Multiple monitors one computer, LCD Y splitter
Send one video source to numerous displays

VGA Video/Audio Splitter

Use one computer to display the same high-resolution image on numerous monitors: up to 256

Also known as: VGA splitter, video splitter, VGA video splitters, video distribution amplifier, PC video splitter, monitor splitter, multiple monitor, video port expander, LCD Y splitter, multi-port video hub, split video to numerous VGA/SVGA UXGA/WUXGA displays, 2/4/8/16 way splitter, two/four/eight/sixteen channel splitter.

VGA Video/Audio Splitter

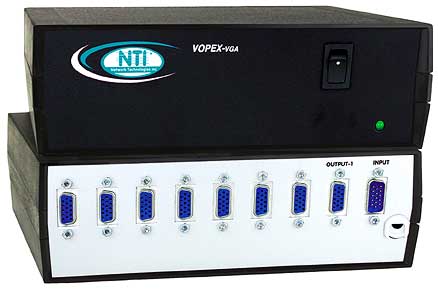

VOPEX-8V-H VGA Video Splitter (Front & Back)

Available Options

  • Audio
  • HDMI Extender for use with Digital SignageDesigned and Manufactured in the U.S.A.

The VOPEX® VGA Video Splitter enables up to 16 VGA monitors to be driven by a single computer. The same image can be displayed on up to 256 monitors by cascading. The DDC2B protocol is supported from Output-1.

The VOPEX® VGA Video Splitter enables up to 16 VGA monitors to be driven by a single computer. The same image can be displayed on up to 256 monitors by cascading. The DDC2B protocol is supported from Output-1.

  • Supports VGA/SVGA UXGA/WUXGA monitors, including LCD flat panel monitors.
  • 1900x1200 resolution with no degradation.
  • Supports the DDC2B protocol.
  • Available with optional stereo audio.
  • Burn-in monitors after repair.
  • Ideal for classrooms, tradeshows, or digital signage where high quality video on multiple monitors is needed.
Video Input
  • Male 15-pin HD input connector.
  • Supports a PC, SUN or MAC with VGA video.
  • Multiplatform support: Windows 2000/XP/Vista/Server 2000/ 2003/2008, Solaris, Linux, FreeBSD, and MAC OS 9/10.
  • Maximum input levels for video: 1.45Vp-p.
  • Input impedance: 75 Ohms.
  • Supports Separate and Composite TTL level sync and Sync On Green.
  • Sync input frequency ranges:
    • Horizontal: 15 to 130 kHz.
    • Vertical: 30 to 150 Hz.
Video Output
  • Female 15-pin HD output connectors.
  • Crisp and clear 1900x1200 resolution.
  • Bandwidth is 150 MHz.
  • Maximum output levels for video: 1.45Vp-p.
  • Output impedance: 75 Ohms.
  • All outputs are individually buffered.
  • All monitors must be able to support the highest resolution of the DDC monitor connected to Output-1.
Optional Audio
  • 3.5 mm stereo audio jacks.
  • Frequency response: 20 Hz to 20 kHz, +/-1 dB.
  • Total Harmonic Distortion (THD): 0.012%
  • Stereo Crosstalk: -82 dB.
  • Input impedance: 10k Ohms.
  • CD quality audio output.
  • Requires powered speakers.
Environmental
  • Operating temperature: 32 to 100°F (0 to 38°C)
  • Storage temperature: -20 to 140°F (-30 to 60°C)
  • Operating and Storage Relative Humidity: 17 to 90% non-condensing RH.
Regulatory Approvals
  • RoHS
Warranty
  • Two years.
Power
  • 110 or 220 VAC at 50 or 60 Hz.

Power Consumption
Model Power (W)
VOPEX-2V-H 5
VOPEX-4V-H 5
VOPEX-8V-H 5
VOPEX-16V-H 10
VOPEX-2VA-H 5
VOPEX-4VA-H 5
VOPEX-8VA-H 10

MTBF
NTI Part # MTBF (hrs)
VOPEX-2V-H 175,784
VOPEX-4V-H 153,392
VOPEX-8V-H 135,708
VOPEX-16V-H 110,121
VOPEX-2VA-H 166,448
VOPEX-4VA-H 144,863
VOPEX-8VA-H 125,808



Cables
  • Extend 1900x1200 resolution to 50 feet (15 meters), and 1600x1200 to 100 feet (488x366 to 30 meters) with no degradation using NTI's VEXT-xx cables.
  • 3-foot (0.91-meter) VGA cable included.
  • 3-foot (0.91-meter) audio cable included (with VOPEX-xVA-H).

Application Drawings

  • VGA Video/Audio Splitter

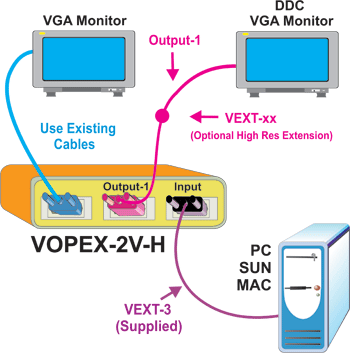

    VGA Video/Audio Splitter
    How to use one computer to display the same high-resolution image on up to 256 monitors

Application Notes

  • Drive up to 256 Monitors with 1 Computer
    Application Note - Drive up to 256 Monitors with 1 Computer
    Cascade video splitters to display the same crisp and clear high-resolution image on a maximum of 256 monitors.
  • Switched and Local Display of 3 Computers
    Application Note - Switched and Local Display of 3 Computers
    Each user can locally control and view their own computer. A remote monitor can display the output from any attached video inputs.

CAD Drawings

  • VGA Video/Audio Splitter (VOPEX-4V-H)

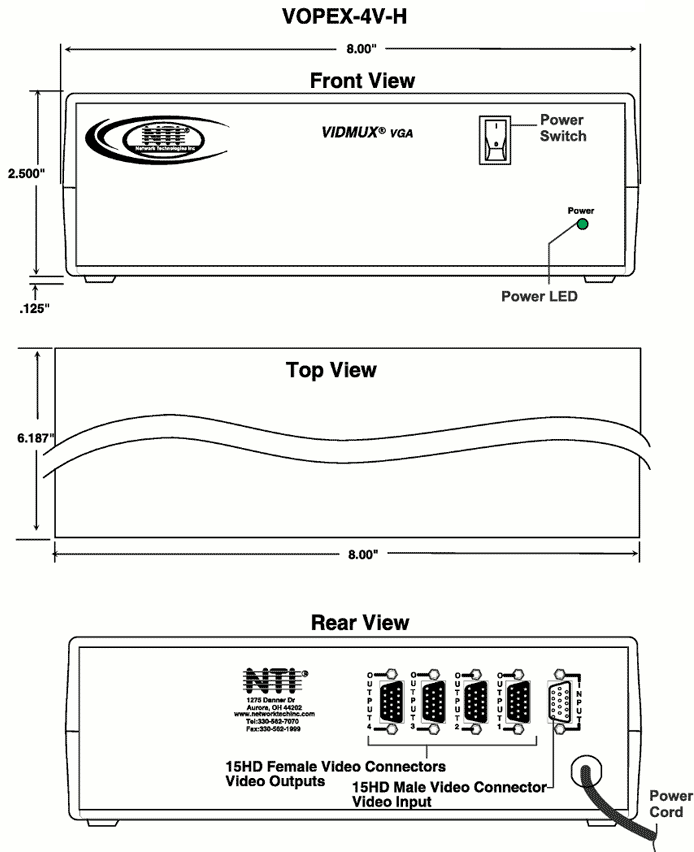

    VGA Video/Audio Splitter (VOPEX-4V-H)
  • "The VOPEX-2V-H was perfect for us – we needed to have a monitor at our computer location and then run two 50' cables to two large 46" displays mounted on a wall outside my clean room, and this unit worked perfect."

    Thomas Leszyk
    Eaton Corporation
    Horseheads, NY
  • "The NTI VOPEX-2V-H VGA Dual Video Driver served for a good 7-9 years in our plant. I did not even know it existed until it failed last week. Thanks for a good product"

    Jody Derrick
    Oklahoma Municipal Power Authority
    Ponca City, OK
  • "The VGA video splitters and cables are good and the service is great! I always get what I need when I need it. I always wait and order these parts for my projects last because I know I can have them in less then a week.

    Your product knowledge and level of service is something I know I can count on."

    Tom Boston
    Draeger Medical, Inc.
    Telford, PA

VGA Video Splitters

NTI Part # # of Ports Desktop Size
WxDxH (In.)
Price Quote Buy

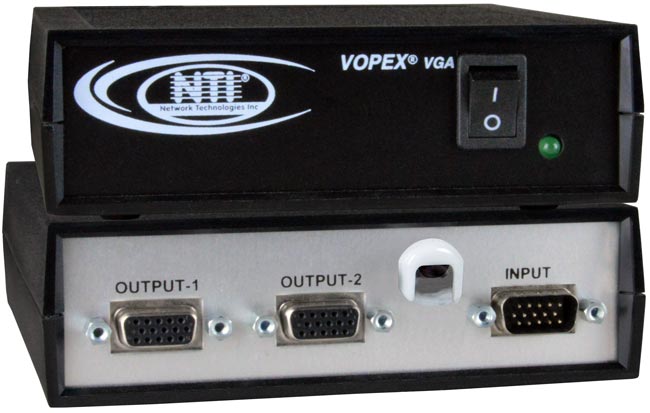

VOPEX-2V-H 2 4.9x5.2x1.7 $170.00
VOPEX-4V-H 4 8x6.2x2.6 $190.00
VOPEX-8V-H 8 8x6.2x2.6 $245.00
VOPEX-16V-H 16 8x6.2x2.6 $375.00

VGA Audio/Video Splitters

NTI Part # # of Ports Desktop Size
WxDxH (In.)
Price Quote Buy
VOPEX-2VA-H 2 4.9x5.2x1.7 $200.00
VOPEX-4VA-H 4 8x6.2x2.6 $230.00
VOPEX-8VA-H 8 8x6.2x2.6 $315.00

Male to Female VGA Cable

NTI Part # Length Price Quote Buy
VEXT-3 3 ft $2.70
VEXT-6 6 ft $3.50
VEXT-10 10 ft $4.40
VEXT-15 15 ft $5.80
VEXT-25 25 ft $8.40
VEXT-35 35 ft $11.00
VEXT-50 50 ft $15.00
VEXT-75 75 ft $21.40
VEXT-100 100 ft $28.40

Male to Male VGA Cable

NTI Part # Length Price Quote Buy
VEXT-1-5-MM 1.5 ft $2.30
VEXT-3-MM 3 ft $2.70
VEXT-6-MM 6 ft $3.50
VEXT-10-MM 10 ft $4.40
VEXT-15-MM 15 ft $5.80
VEXT-25-MM 25 ft $8.40
VEXT-35-MM 35 ft $1.00
VEXT-50-MM 50 ft $15.00
VEXT-75-MM 75 ft $21.40
VEXT-100-MM 100 ft $28.40

Male to Male Stereo Audio Cables

NTI Part # Length Price Quote Buy
SA-3-MM 3 ft $1.50
SA-6-MM 6 ft $1.80
SA-10-MM 10 ft $2.80
SA-15-MM 15 ft $4.00
SA-25-MM 25 ft $6.50
SA-35-MM 35 ft $9.60
SA-50-MM 50 ft $12.90
SA-100-MM 100 ft $24.70
