HDMI Over Gigabit IP Extender with IR and RS232

Extend HD 1080p, multi-channel audio, IR, RS232 up to 328 feet using Gigabit Ethernet. Use with cascaded network switches to extend up to 1,000 feet.

Also known as: HDMI over IP network extender, remote digital HDMI monitor display, HDMI transmitter/receiver, high definition 1080p HDMI range extender, extend HDTV video IR RS232, gigabit HDMI extender.

XTENDEX® ST-IPHD-IR-LC (Local & Remote Unit)

Product Highlights

  • Extend 1080p video, IR & RS232 up to 328 ft via one CATx cable
  • Use with cascaded network switches to extend to 1,000 feet
  • Supports Point-to-Point, Point-to-Many & Many-to-Many connections
  • Supports a local HDTV display.
  • HDMI Extender for use with Digital Signage

Additional Images

  • IR remote control included with ST-IPHD-IR-R-LC

The XTENDEX® HDMI Over Gigabit IP Extender transmits digital HDMI signal, IR, and RS232 to one or more receivers up to 328 feet away over a 1000Base-T Gigabit Network connected with CAT5e/6 cable.


Each HDMI Over Gigabit IP Extender consists of a local unit that connects to an HDMI source, and a remote unit that connects to an HDMI display. The local and remote units can be connected together for a Point-to-Point connection via CATx or a Point-to-Many connection via a network switch. Support for multiple transmitters requires a managed network switch.

The XTENDEX® HDMI Over Gigabit IP Extender transmits digital HDMI signal, IR, and RS232 to one or more receivers up to 328 feet away over a 1000Base-T Gigabit Network connected with CAT5e/6 cable.


Each HDMI Over Gigabit IP Extender consists of a local unit that connects to an HDMI source, and a remote unit that connects to an HDMI display. The local and remote units can be connected together for a Point-to-Point connection via CATx or a Point-to-Many connection via a network switch. Support for multiple transmitters requires a managed network switch.

  • Supports HDTV resolutions to 1080p.
  • Broadcast real-time HDMI video and audio signals to multiple display locations with a managed or unmanaged (also known as non-managed) network switch.
  • Transmits an HDMI signal over one CAT5e/6 cable.
  • Supports a local HDMI display.
  • Plug-and-Play installation allows receivers to find the transmitters automatically on the same subnet. (Network configuration may be required for managed network switch.)
  • Supports 10/100/1000 Ethernet connection.
  • Built-in default EDID table.
  • HDCP 2.0 compliant.
  • Support for multiple transmitters requires a managed network switch with VLAN/IGMP support. Standard LAN switches can only support one transmitter.
    • The managed switch must support port based IEEE 802.1Q VLAN, IGMP, and permit duplicate IP addresses across the VLAN domains.
    • Each VLAN acts as a separate HDMI Over IP Channel on the network.
    • Number of local and remote units that can be used is dependent on the backplane bandwidth of the switch.
      • Supports a maximum of 64 transmitters.
    • Cascade managed network switches up to 3 levels, allowing the farthest display to be located up to 1,000 feet away from the source device. Each receiver can be located up to 328 feet away.
    • Configure the DIP switch on a transmitter and use the included IR remote control to select the source to be displayed from the receiver.
      • LED Display on remote unit identifies which source device channel the receiver is set to display.
  • For a point-to-many connection, a standalone network with an unmanaged network switch, hub, or router can be used instead of a managed network switch.
    • It is not recommended to use any other network devices on this standalone network as it may cause degradation in performance.
  • Local and remote units must be in the same LAN. The units do not support WAN connections.
  • Supports 2-way RS232 commands at baud rate 2400 (control software on a PC, or other automated control system hardware such as Control4 or Crestron) to control any devices attached to the matrix using RS232.
  • Full Infrared Remote (IR) control of HDMI source from remote HDTV using existing source remote control.
  • Easily expandable. Add remote units as you add monitors.
  • Inexpensive CAT5e/6 cable replaces bulky video cables.
  • Ideal solution for digital signage applications.

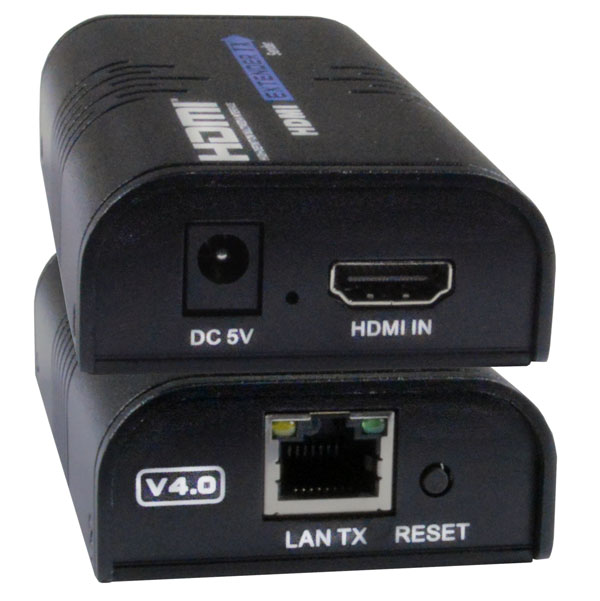

Local Unit
  • One female HDMI connector for source connection.
  • One female HDMI connector for local HDTV display.
  • One female 3.5mm jack for bidirectional RS2332.
  • One female 1000Mbps RJ45 port for sending high definition video/audio signals.
  • Six DIP Switches for linking the transmitters to the receivers in a Point-to-Many or Many-to-Many configuration.
  • Supports HDTV resolutions to 1080p.
  • Supports embedded digital audio through HDMI compatible TVs or audio receivers.
  • Video Bandwidth: 150 Mbps via LAN.

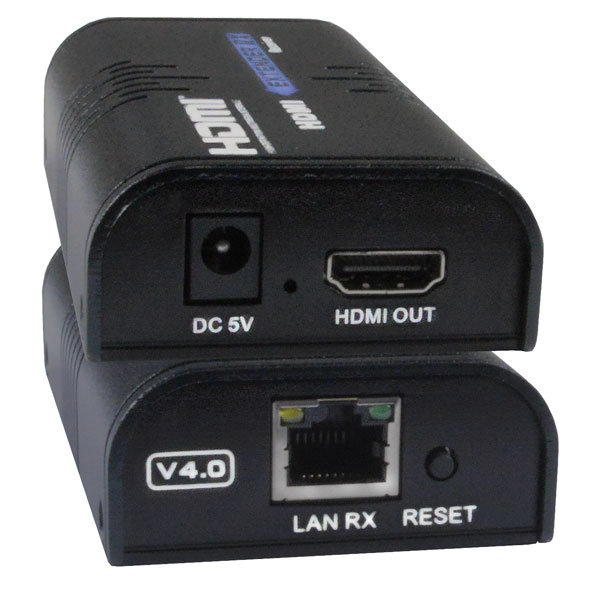

Remote Unit
  • One female HDMI connector for HDTV or computer display.
  • One female 3.5mm jack for bidirectional RS2332.
  • One female 3.5mm jack for IR receiver (included).
    • IR frequency range: 30 kHz to 50 kHz.
  • One female 1000Mbps RJ45 port for receiving high definition video/audio signals.
  • Supports HDTV resolutions to 1080p.
  • Supports embedded digital audio through HDMI compatible TVs or audio receivers.
RS232
  • Supports TXD and RXD.
  • Baud rate: 2400
Power
  • Local and remote unit:
    • Input: 100 to 240 VAC at 50 or 60 Hz via AC adapter. (US AC adapter included.)
    • Output: 5VDC, 2.5A
Dimensions
  • Local unit WxDxH (in): 6.10x3.11x0.98 (155x79x25 mm).
  • Remote unit WxDxH (in): 6.10x3.99x0.98 (155x101.5x25 mm).
Environmental
  • Operating temperature: 32 to 104°F (0 to 40°C).
  • Storage temperature: -4 to 140°F (-20 to 60°C).
  • Operating/storage relative humidity: 10 to 85% non-condensing RH.
Regulatory Approvals
  • TAA compliant
Warranty
  • Two years
Max Distance
  • 328 feet in a Point-to-Point connection.
  • 656 feet in a Point-to-Point, Point-to-Many or Many to-Many connection via a network switch.
    • Use with cascaded network switches to extend up to 1,000 feet.
    • The max length between the switch and the local/remote unit is 328 feet.
Cables
  • Use HD-xx-MM cable to connect an HDMI source or display (not included).
  • Use DVI-HD-xx-MM cable to connect a DVI source or display (not included).
  • Use CAT5e/6 straight through cable with TIA/EIA-568B wiring terminated with standard RJ45 connectors (not included)
  • 3.5mm to DB9 RS232 cable included with transmitter and receiver.
  • IR receiver and remote control included with receiver.

Application Drawings

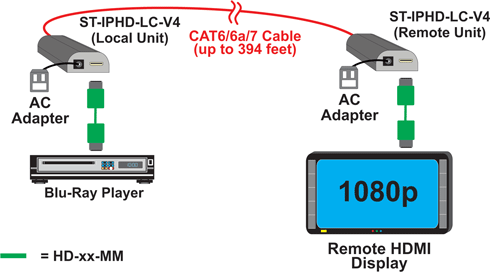

  • How to Configure Point-to-Point Connections
    HDMI Over Gigabit IP Extender with IR and RS232

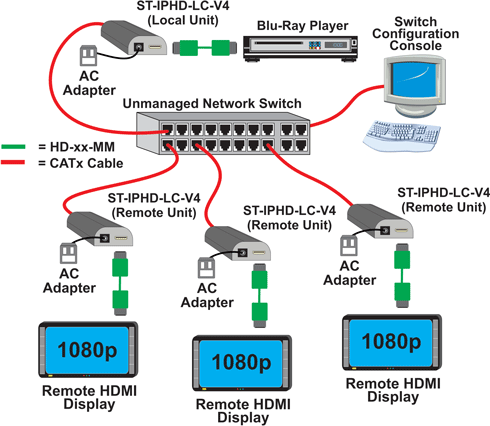

  •  How to Configure Point-to-Many Connections Using an Unmanaged Network Switch
    HDMI Over Gigabit IP Extender with IR and RS232
    For a point-to-many connection, a standalone network with an unmanaged network switch, hub, or router can be used instead of a managed network switch. It is not recommended to use any other network devices on this standalone network as it may cause a degradation in performance.
  •  How to Configure Many-to-Many Connections Using a Managed Network Switch
    How to Configure Point-to-Many Connections Using an Unmanaged Network Switch
    Support for multiple transmitters requires a Managed network switch with VLAN/IGMP support.

HDMI Over Gigabit IP Extender with IR and RS232

NTI Part # Local or Remote Unit Price Quote Buy
ST-IPHD-IR-L-LC Local $255.00
ST-IPHD-IR-R-LC Remote $190.00

Universal Power Plug Adapters

NTI Part # Description Price Quote Buy
PWR-UNVAS3112 Universal AS/NZS 3112 Power Adapter for Australia, New Zealand, China $5.00
PWR-UNVBS1363 Universal BS 1363 Power Adapter for UK, Iraq $5.00
PWR-UNVBS546-D Universal BS 546 Type D Power Adapter for India, Parts of Africa $6.00
PWR-UNVBS546-M Universal BS 546 Type M Power Adapter for South Africa $6.00
PWR-UNVCEI2350 Universal CEI 23-50 Power Adapter for Italy, Uruguay $4.60
PWR-UNVCEE716 Universal Europlug CEE 7/16 Power Adapter for Europe, Russia, UAE $5.00
PWR-UNVCEE77 Universal Schuko CEE 7/7 Power Adapter for Europe $5.50
PWR-UNVSEV1011 Universal SEV 1011 Power Adapter for Switzerland $6.00
PWR-UNVSI32 Universal SI 32 Power Adapter for Israel, Palestine $5.00

HDMI Male-Male Cable

NTI Part # Length Price Quote Buy
HD-3-MM 3 feet $2.70
HD-6-MM 6 feet $3.45
HD-10-MM 10 feet $5.00
HD-15-MM 15 feet $7.50

DVI-D Male to HDMI-A Male Single Link Cable

NTI Part # Length Price Quote Buy
DVI-HD-1M-MM 1 meter $4.30
DVI-HD-2M-MM 2 meter $8.00
DVI-HD-3M-MM 3 meter $10.00
DVI-HD-5M-MM 5 meter $11.00
