Environment Monitoring System Siren Alarms
Alert & Communication Accessories compatible with ENVIROMUX® E-2D, E-5D and E-16D
Sirens

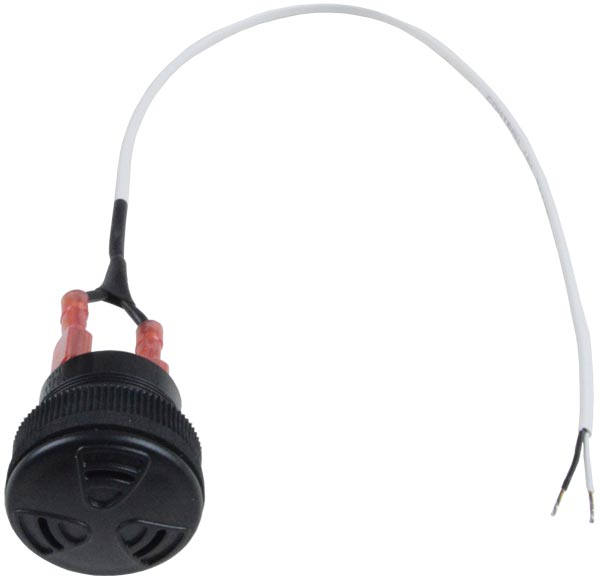

Rugged Miniature Piezo Alarm, Panel Mount, 103 dB
E-BEEP1-x
- Emits loud continuous tone to deter intruders or alert personnel.
- Output level: 95 to 103 dB at 2 feet.
- Input voltage: 5-15VDC.
- Panel mount.
- 2-wire interface.
- Maximum cable length: 1000 ft (304.8 m).
- Epoxy encapsulated and polarity protected.
- Water, humidity and vibration resistant.
- ASTM B117 and IP 68 rated protection.
- Operating temperature: -4 to 149°F (-20 to 65°C)
- Dimensions (WxD): 1.3x1.15 in (33x29.2 mm).
- Current consumption: 50mA @ 12VDC.
- Powered by E-2D/5D/16D.
- Regulatory approvals: RoHS, UL.
- Terminated with 22 AWG plenum 2-wire cable.
- Available lengths: 1/10/50/100/200/400/600/800/1000 feet.
Downloads & References
- Installation Manual
- CAD Drawing
- E-BEEP1-x.step – 3D image file
Miniature Piezo Buzzer, PCB Mount, 85 dB
E-BEEP2-x
- Emits loud continuous tone to deter intruders or alert personnel
- Output level: 85 dB.
- Input voltage: 12VDC.
- PCB mount pins on 7.62 mm centers.
- 2-wire interface.
- Max current consumption: 20mA @ 12VDC.
- Powered by E-2D/5D/16D.
- Dimensions (WxH): 0.61x0.55 in (15.4x13.9 mm).
- Terminated with 22 AWG plenum 2-wire cable.
- Available lengths: 1/10/50/100/200/400/600/800/1000 feet.
Downloads & References
Piezo Siren, 108 dB
E-SRN-M
- Emits ear-piercing sound to deter intruders
- Output Level: 108 dB
- Dimensions WxDxH: 1.5x1.7x2.4 in (38x43x61 mm)
- Screw terminal
- 2-wire interface
- Input voltage: 6-12VDC
- Maximum cable length: 500 ft (152 m)
- Current consumption: 210mA @ 12VDC.
- Powered by E-2D/5D/16D.
- Regulatory approvals: CE, RoHS
Downloads & References
IP65 Indoor/Outdoor Piezo Siren with LED Strobe Beacon, 110 dB
E-SRN-BCNx-O
- Simultaneously emits a loud continuous tone and a flashing LED strobe light to deter intruders or alert personnel.
- Available with a red or blue lens.
- Beacon flash rate: 300 per minute.
- Piezo siren output level: 110 dB at 1 foot.
- Weatherproof enclosure.
- IP65-rated water and dust protection.
- Mounts in single-gang box or surface-mount (2 mounting screws included).
- 2-wire interface.
- Maximum cable length: 1,000 ft (304.8 m)
- Operating temperature: -13 to 131°F (-25 to 55°C).
- Dimensions (WxDxH): 2.91x1.97x4.84 in (74x50x123 mm)
- Input voltage: 6 to 15 VDC
- Current consumption: 90mA @ 12VDC
- Powered by E-2D/5D/16D.
Downloads & References
LED Light Tower with Buzzer Alarm – Red, Yellow, Green
E-LTA-RYG
- LED Light Tower with red, yellow, green lenses provides visual signal for normal, warning, and critical alert status.
-
Light Mode: Steady
- Use the ENVIROMUX web interface to program the LEDs to flash (coming soon).
-
LED brightness:
- Red LED: 120 lumen
- Yellow LED: 120 lumen
- Green LED: 120 lumen
-
Integrated buzzer alarm emits a loud continuous tone to alert personnel.
- Piezo siren output level: 85 dB at 3.28 feet (1 meter).
-
7-wire interface.
-
Interfaces with the E-2D/5D/16D Enterprise Environment Monitoring Systems.
- For E-16D, directly connect to the output relays.
- For E-2D and E-5D, requires E-DI16DOR16-V2 Digital Input/Output Expander.
-
Interfaces with the E-2D/5D/16D Enterprise Environment Monitoring Systems.
- IP53-rated water and dust protection.
- Mounting: Fixed base.
- Cable length: 2.04 ft (0.62 m)
- Operating temperature: -4 to 113°F (-20 to 45°C)
- Dimensions (WxH): 1.96x15.56 in (50x395 mm)
- Input voltage: 12 VDC
-
Current consumption: 0.25A (max) @ 12VDC
- Red LED: 30mA
- Yellow LED: 60mA
- Green LED: 80mA
- Siren: 20mA
- Powered by E-2D/5D/16D.
- MTBF: 50,000 hours
- Regulatory approvals: CE, RoHS
- Ideal for mounting on top of server cabinets, or use in manufacturing plants, assembly lines, call stations, broadcast studios, and factories.
Clearance Sirens
Piezo Alarm, 73.8 dB
E-BEEP4-1-CLR
- Emits loud continuous tone to deter intruders or alert personnel.
- Output level: 73.8 dB at 2 feet (0.61 m), and 63.5 dB at 6.5 feet (2 m).
- Input voltage: 4-28VDC
- Panel Mount.
- 2-wire interface.
- Environmental:
- Operating temperature: -22 to 185°F (-30 to 85°C).
- Storage temperature: -40 to 203°F (-40 to 95°C).
- Dimensions (WxD): 1.5x0.9 in (37.8x23.5 mm).
- Current consumption: 8mA @ 12VDC.
- Powered by E-2D/5D/16D.
- Material: ABS rated UL-94
- Regulatory approvals: RoHS.
- 1-foot 2-wire cable included.
Downloads & References
